Technical Documents
Specifications
Brand
RS ProProduct Type
Pressure Switch
Port Size
1/4 in
Minimum Operating Pressure
5bar
Current
500mA
Switch Output
NC, NO
Contact Configuration
NC
Pressure Type
Positive Pressure
Voltage
250V ac
Series
F4
Maximum Operating Pressure
50 bar
Minimum Operating Temperature
-25°C
Connection Thread Standard
G
Maximum Operating Temperature
85°C
Standards/Approvals
RoHS, DIN
Hazardous Area Certification
No
IP Rating
IP65
LED Indicator
No
Country of Origin
Italy
Product Details

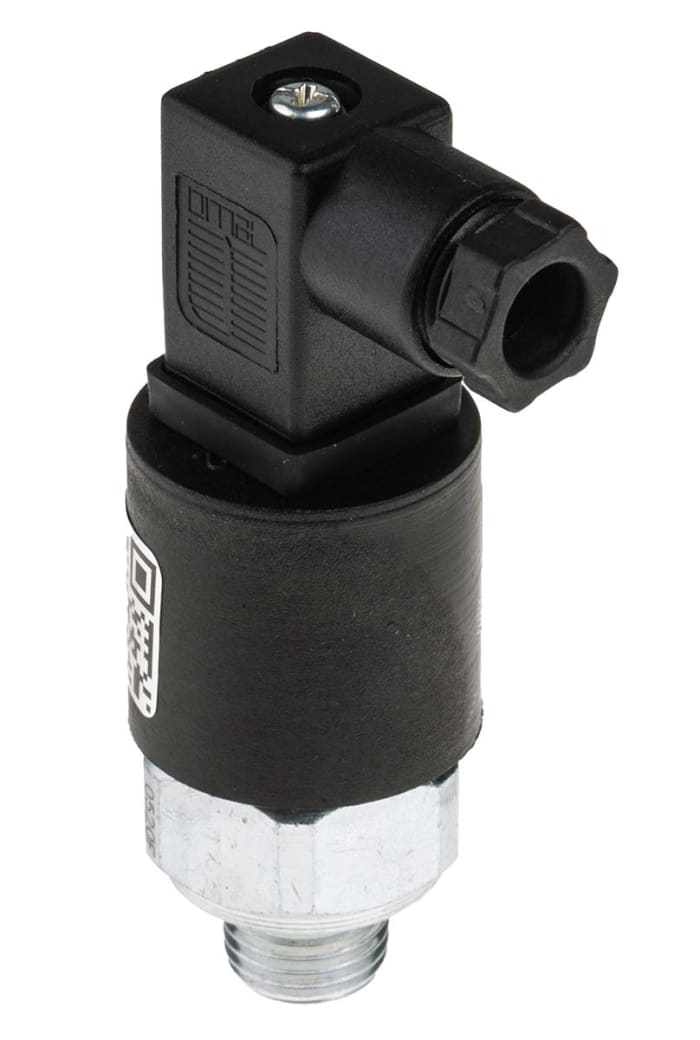

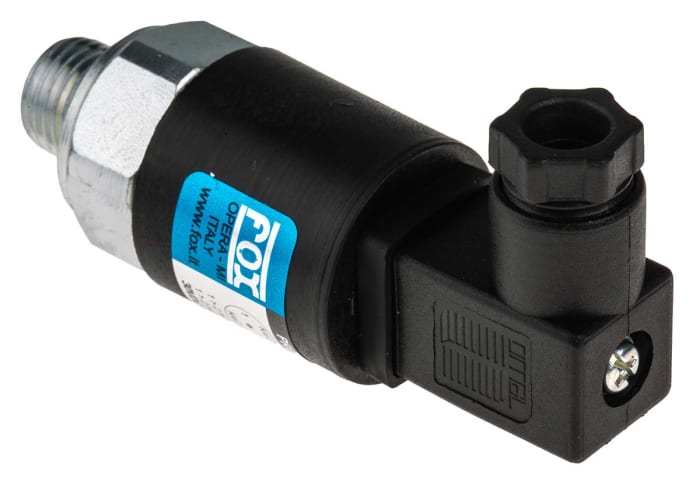

From the trusted RS PRO brand, a series of double contact adjustable pressure switches designed for hydraulic and pneumatic applications. Designed to detect a rise or fall in fluid pressure, the robust switches provide an electrical signal once the setpoint pressure is reached. Pre-set pressure is adjusted by rotating a screw which is located in the centre of the switch head. Clockwise to increase the pressure and anti-clockwise to decrease the pressure.

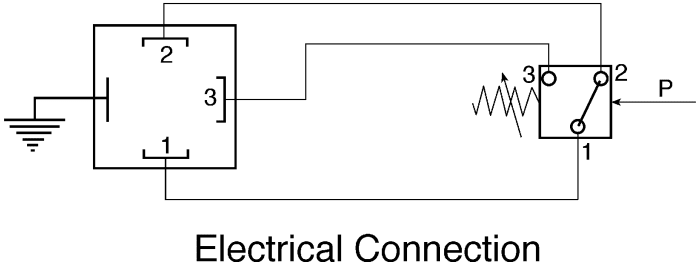

Robustly constructed from steel, the RS PRO pressure switches can be mounted in any orientation making them easy to install in a wide range of industrial environments. Compact in design the switches are ideal for designs requiring a small footprint. Connection via a ¼ BSP parallel Male thread. Electrical connection DIN 43650 IP65 plug.
RS PRO Adjustable pressure switches are suitable for a diverse range of industrial applications. Due to their versatility and simple design, the switches can be used in both pneumatic and hydraulic systems. Some of the more common are
Pressure switches that allow microswitch operation once a pre-set pressure is reached. K and K3 Series incorporate a mechanical stop providing over-pressure protection for the spring and microswitch. Electrical connections for all models to DIN 43650.
297-0052 does not include a mechanical stop and requires a 2mm allen key in order to adjust
