Technical Documents
Specifications
Brand

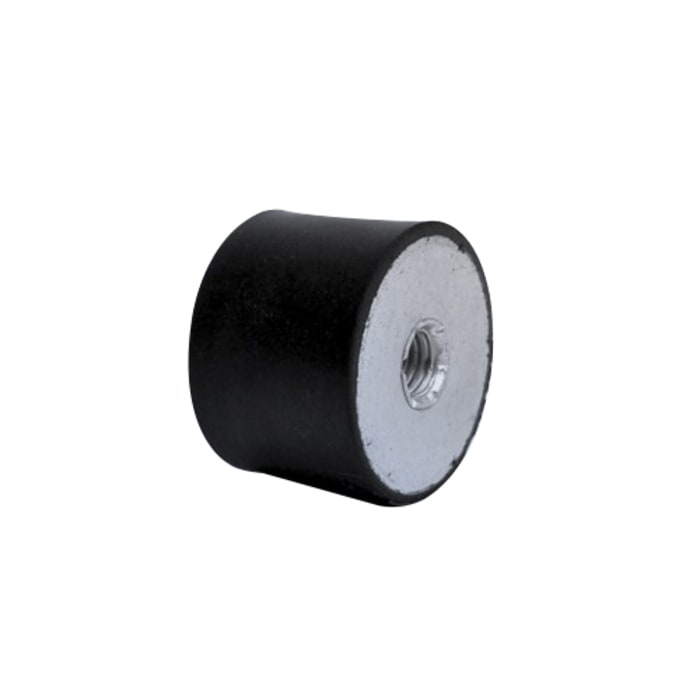

RS ProAnti Vibration Mount Type
Female Buffer Foot
Product Type
Anti-Vibration Mount
Thread Size
M12
Overall Height
50mm
Outside Diameter
50mm
Minimum Operating Temperature
-25°C
Material
Natural Rubber
Maximum Operating Temperature
70°C
Mount Type
Cylindrical
Standards/Approvals
RoHS
Shore Hardness
60 Shore A
Compression Load
156.64kg
Compression Deflection
5mm
Series
AV Type C
Country of Origin
India
Product Details
Anti Vibration Mounts when properly chosen provide a cost effective solution to problems involving vibration, shock and noise control – the rubber buffer can be used in shear/compression or both. However, it must be noted that they do not provide a fail-safe solution. Available in a large range of sizes, thread lengths and material, the cylindrical vibration damper is a classic all round solution.
Stock information temporarily unavailable.
€ 34.86
€ 34.86 1 Bag of 2 (Exc. VAT)
1
€ 34.86
€ 34.86 1 Bag of 2 (Exc. VAT)
Stock information temporarily unavailable.
1
