Technical Documents
Specifications
Brand
RS ProConnection Thread Standard
G
Product Type
Hydraulic Flow Control Valve
Port Size
1/4 in
Maximum Flow Rate
20L/min
Maximum Operating Pressure
210 bar
Series
RS PRO
Body Material
Nickel Plated Brass
Seal Material
Nitrile Rubber (NBR)
Minimum Operating Temperature
-20°C
Maximum Operating Temperature
100°C
Mount Type
In Line Mount
Standards/Approvals
No
Thread Size
1/4 in
Country of Origin
Italy
Product Details

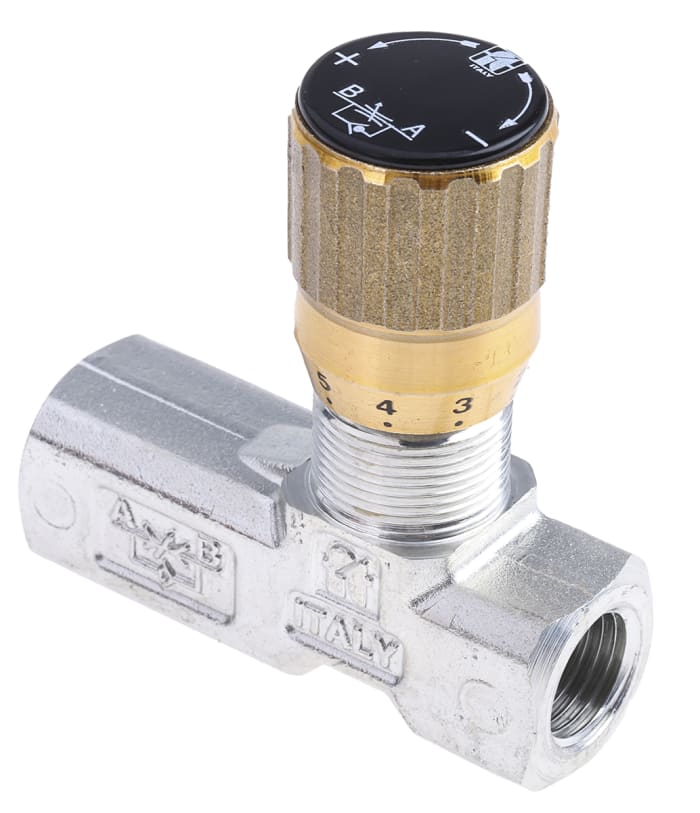

Use this line mounting hydraulic flow control valve from RS PRO to help you shut off and control flow in a wide range of hydraulic systems. The needle-operated valve can handle flow rates up to 20 litres per minute.
The control valve is single-acting, which means it allows you to control the flow in one direction only, with a free flow in the opposite direction. It fits onto a 1/4 G-type thread and can operate at pressures up to 210 bar.
The body of the valve is made from corrosion-resistant, nickel-plated brass. It has a nitrile rubber seal, which is both abrasion-resistant and able to keep out petroleum-based products.
Part of the quality RS PRO range, this flow control valve has been rigorously tested for consistency and reliability. An essential element in hydraulic systems, valves of this type are used in applications ranging from dishwashers to rides in amusement parks.
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
