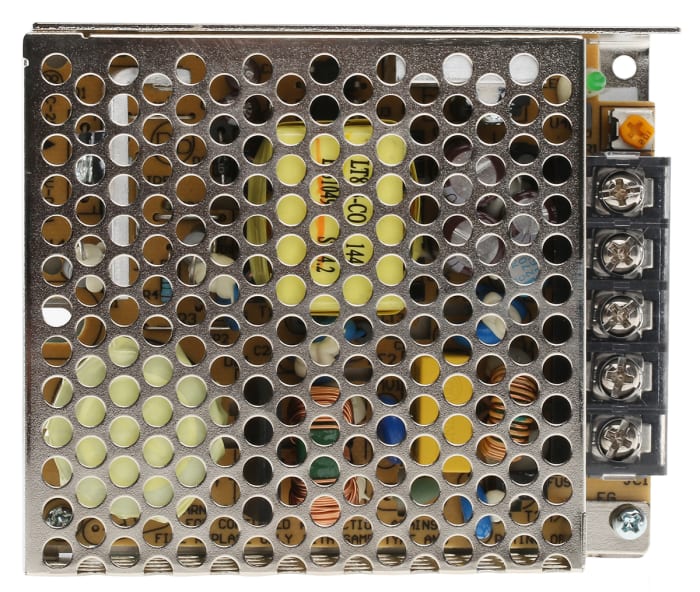

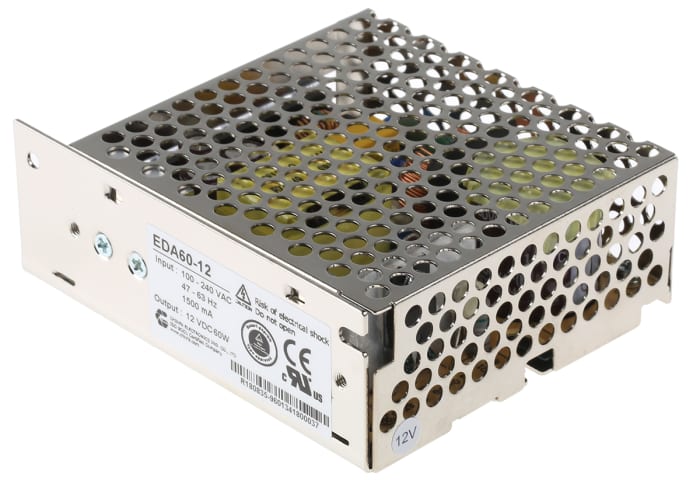

RS PRO Embedded Switch Mode Power Supply SMPS, 12V dc, 5A, 60W, 1 Output, 88 → 264V ac Input Voltage
Technical Document
Specifications
Brand
RS ProOutput Voltage
12V dc
Output Current
5A
Power Rating
60W
Number of Outputs
1
Input Voltage
88 → 264V ac
Mounting Type
Chassis Mount
Package Type
Enclosed
Length
98mm
Width
82mm
Depth
35mm
Efficiency
88%
Maximum Temperature
+71°C
Minimum Temperature
-40°C
Weight
310g
Country of Origin
China
Product details
45 - 60 W, Universal Input, EDA60 Series
The EDA100 series is a family of single output AC DC converters. These Switch mode Power supplies come in a compact size and are fully enclosed in a plastic case. The EDA100 is ideal for use in limited space, when a chassis mountable AC DC converter is required. These Power supplies have a built in PI filter and a Universal input, making them perfect for use in a variety of electronic equipment. The EDA100 is ideal for applications in Factory automation, off site test & Measurements and communication equipment.
Short circuit protection
Internal input filter
High efficiency up to 89%
High average efficiency
Low standby power consumption
Metal case
Approvals
UL, cUL, TUV, CE
Standards
EN 60950-1, UL 60950-1
