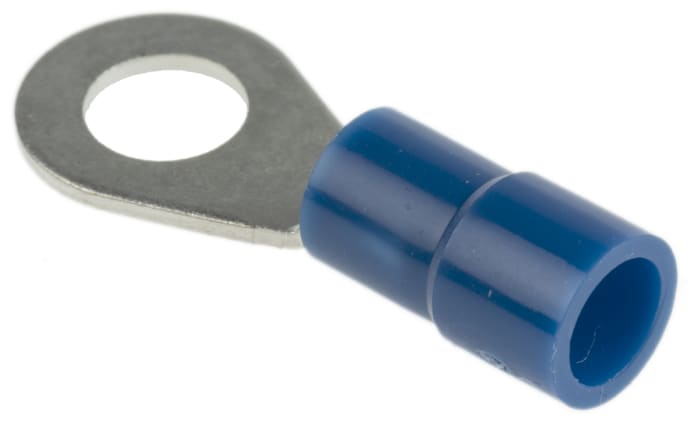

RS PRO, DRVY Insulated Ring Terminal, 5.3 mm Stud Size 16 AWG 14 AWG Wire Size, Blue
Technical Document
Specifications
Brand
RS ProProduct Type
Ring Terminal
Series
DRVY
Insulation
Insulated
Insulation Material
Vinyl
Outer Ring Diameter
10mm
Inner Ring Diameter
5.3mm
Minimum Wire Size AWG
16 AWG
Maximum Wire Size AWG
14 AWG
Overall Length
25mm
Stud Size
5.3 mm
Colour
Blue
Contact Material
Copper
Contact Plating
Tin
Thickness
0.8mm
Standards/Approvals
No
Maximum Operating Temperature
105°C
Minimum Wire Size mm²
1.5mm²
Minimum Operating Temperature
-40°C
Maximum Wire Size mm²
2.5mm²
Country of Origin
Taiwan, Province Of China
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
€ 10.26
€ 0.103 Each (In a Bag of 100) (Exc. VAT)
100
€ 10.26
€ 0.103 Each (In a Bag of 100) (Exc. VAT)
Stock information temporarily unavailable.
100
| Quantity | Unit price | Per Bag |
|---|---|---|
| 100 - 900 | € 0.103 | € 10.26 |
| 1000 - 1900 | € 0.094 | € 9.35 |
| 2000 - 4900 | € 0.086 | € 8.55 |
| 5000 - 9900 | € 0.079 | € 7.87 |
| 10000+ | € 0.072 | € 7.18 |
