Technical Documents
Specifications
Brand
RS ProAnti Vibration Mount Type
Compacter
Product Type
Anti-Vibration Mount
Thread Size
M16
Foot Height
40mm
Overall Height
40mm
Static Load Rating
380kg
Outside Diameter
105mm
Material
Natural Rubber
Foot Colour
Black
Maximum Operating Temperature
100°C
Mount Type
Screw
Standards/Approvals
No
Foot Shape
Cylindrical
Shore Hardness
55 Shore A
Compression Load
380kg
Series
KBRB
Country of Origin
India
Product Details

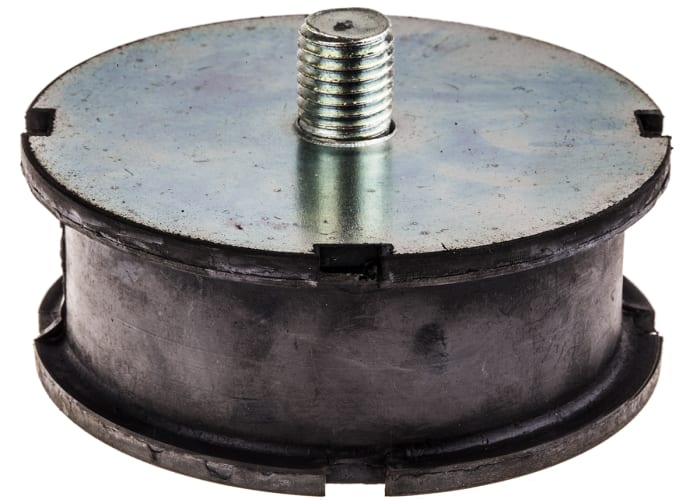

RS Pro Compactor Mounts can be used in cases where the product is subjected to high torsion and shear stress during operation. The mounts can be fixed via the notches produced in the metal disc to prevent rotation of the mount during operation. Applications: Compactor Plates. High Shear Applications. Vibrating Plates.
