Technical Document
Specifications
Brand
RS ProNumber of Contacts
4
Product Type
Circular Connector
Mount Type
Cable
Connector Size
Miniature
Current
1A
Plug/Socket
Plug
Contact Gender
Female
Series
ZC
Orientation
Right Angle
Voltage
48V
Mating Type
Threaded
Minimum Operating Temperature
-10°C
Termination Type
Crimp
Maximum Operating Temperature
65°C
Housing Material
Zinc Alloy
Pole Format
4
Standards/Approvals
No
Contact Plating
Tin
Product details

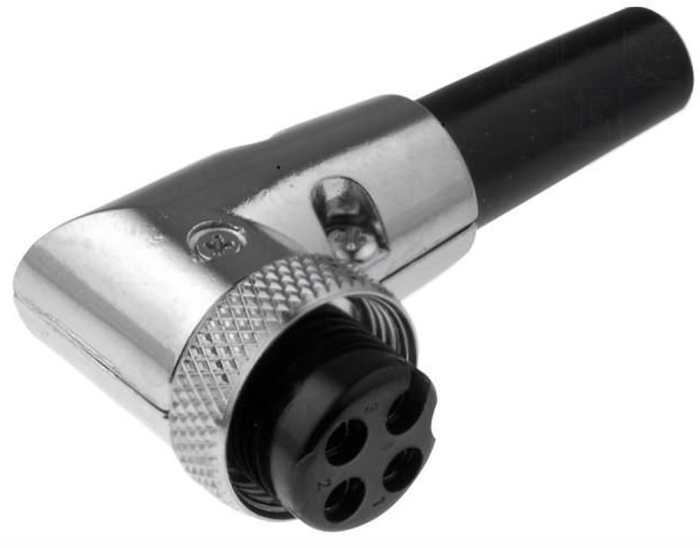

From RS Pro, these miniature right angle connectors are primarily intended for low voltage and signal applications. With the 2-pin, all the way up to 8-pin available, you are sure to find a model suitable for your application. All models are highly reliable and excellent quality.
Features & Benefits
• Current Rating: 1A
• Voltage Rating: 48 V
• Body Orientation: Right Angle (90°)
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
€ 9.40
€ 9.40 Each (Exc. VAT)
1
€ 9.40
€ 9.40 Each (Exc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 9 | € 9.40 |
| 10 - 24 | € 8.86 |
| 25 - 49 | € 8.34 |
| 50+ | € 7.90 |
