RS PRO Cable Tester RJ45, Coaxial

Name: RS PRO Cable Tester RJ45, Coaxial
Brand: RS PRO
SKU: 4439200
Availability: LimitedAvailability

RS Stock No.: 443-9200Brand: RS PRO

View all in Network Testers

Technical Documents

Specifications

Brand

RS Pro

Product Type

Network Cable Tester

Equipment Type

Cable Tester

Connector Type

RJ45, Coaxial

Power Source

Battery

Display Type

LED

Standards/Approvals

Country of Origin

Taiwan, Province Of China

Product Details

RS PRO LAN Test Equipment

An innovative cable tester for faults such as open, shorted and crossed pairs, (core/core or core/shield) connectors, presented by RS PRO.

Compare one transmitting end to the receiving end, with easy to read correct pin configuration. Our tester equipment allows easy to read continuity or fault status, remote testing allows testing of installed cables from wall jack or patch panel. The device comes with 2 RJ45 sockets, 2 adapter cables (BNC/RJ45) for coaxial cables and a remote kit. A two line display (LED) indicates in sequence which pin of the RJ45 plug on cable end A is connected to which pin of cable end B; manual or automatic stepping is possible; if there is a short-circuit, more than 2 LEDs light up simultaneously.

Features and Benefits:

• Tests shield wire integrity
• Auto or manual scanning
• Easy to read continuity and fault status display
• Checks for continuity, open wire, shorted pair and crossed pair faults
• Remote testing of installed wiring

Displays the actual pin configuration of 10BASE-T and 10BASE-2 Ethernet, RJ45/RJ11 modular, 258A, TIA-568A/568B and token ring cables

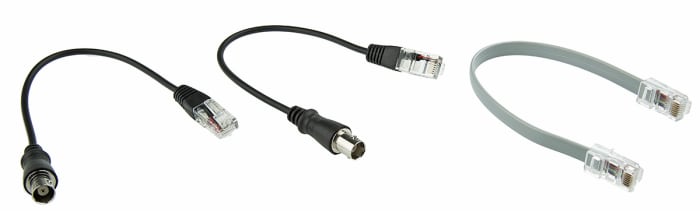

Included: Master Unit, Remote unit, 2 x RJ45 male to BNC male adapter cable, RJ45 UTP patch cable, BNC female/female coupler and 2 x RJ24/RJ11 jack size adapters.
