Technical Documents
Specifications
Brand
RS ProProduct Type
DC Geared Motor
Supply Voltage
3V dc
Sub Type
Brushed Geared
Power Rating
1.71W
Output Speed
587rpm
Shaft Diameter
4mm
Mount Type
Screw
Maximum Output Torque
4Ncm
Gearhead Type
Spur
Gear Ratio
15:1
Current Rating
1.06A
Material
Metal
Shaft Length
10mm
Length
59mm
Standards/Approvals
RoHS
Width
27mm
Depth
30mm
Core Construction
Iron Core
Series
918D
Country of Origin
Taiwan, Province Of China
Product Details

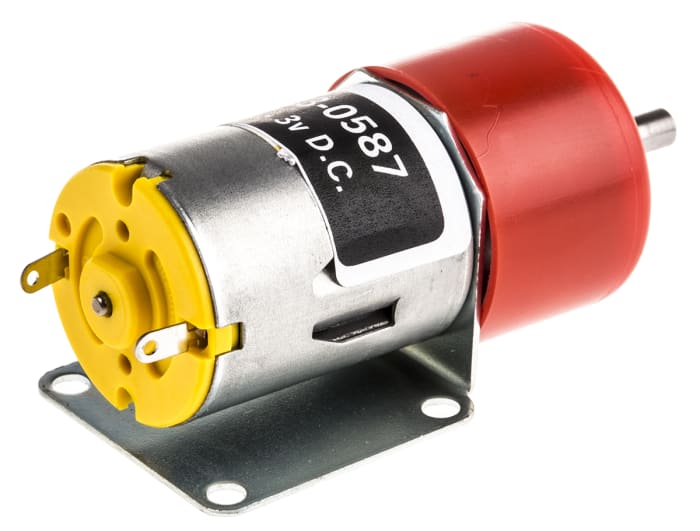

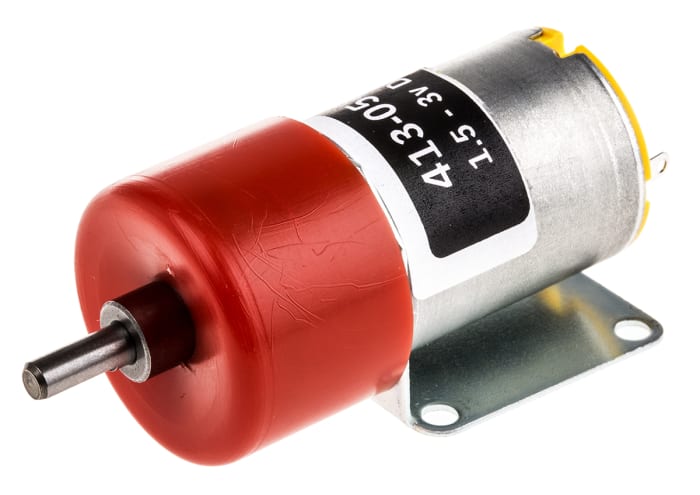

This miniature gearbox is of steel and brass construction with brass gears and is mounted on a 1mm thickness steel bracket. It incorporates
a high quality three pole motor with sleeved bearings. The design and construction of the unit make it suitable for a host of model and light
industrial applications
Stock information temporarily unavailable.
€ 15.16
€ 15.16 Each (Exc. VAT)
1
€ 15.16
€ 15.16 Each (Exc. VAT)
Stock information temporarily unavailable.
1
