Technical Documents
Specifications
Brand
RS ProProduct Type
Buzzer
IP Rating
IP50
Mount Type
Panel
Maximum Supply Voltage
24V dc
Sound Level at 1m
75dB
Maximum Sound Level
75dB
Maximum Operating Temperature
55°C
Series
AVMBL
Base Length
22mm
Hazardous Area Certification
No
Standards/Approvals
RoHS
Tone Type
Intermittent Buzz
Housing Material
Brass, Polybutylene Terephthalate, Steel
Country of Origin
Taiwan, Province Of China
Product Details

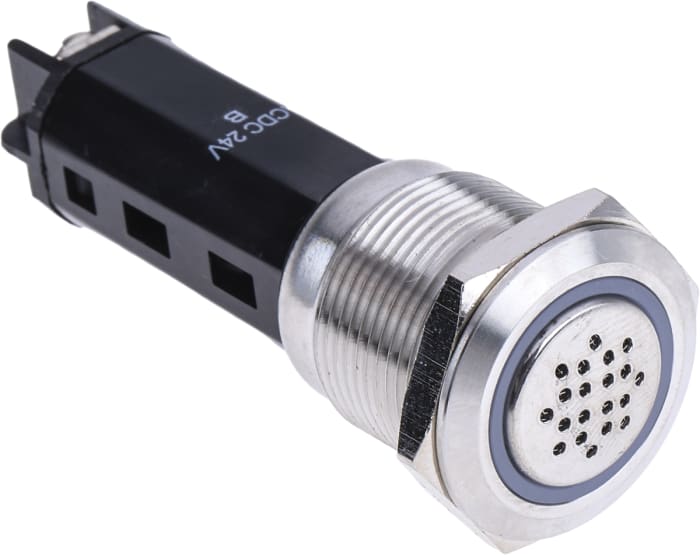

This panel-mounted buzzer from the trusted RS PRO series provides an efficient means of protecting equipment in industrial and automation settings. The buzzer produces coordinated intermittent flashes and a buzzing noise, allowing operators to easily identify which component is failing. The audible alarm can be heard at a 75 dB sound intensity at 1 metre away.
Its ability to resist impacts of up to 0.5 joules makes this product especially useful as an anti-theft alarm. The buzzer conforms to RoHS (restriction of hazardous substances) standards, assuring minimal use of contaminating substances for environment-friendliness are found in the product. To ensure quality, it's compliant with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards, protecting it against damage from electrostatic discharge.
Several of these buzzers can be arranged to work in unison, like in switch cabinets and building-security applications. Combined visual and audible indication aids quick action against vandals.
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
Stock information temporarily unavailable.
€ 24.95
€ 24.95 Each (Exc. VAT)
1
€ 24.95
€ 24.95 Each (Exc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 9 | € 24.95 |
| 10 - 24 | € 20.66 |
| 25 - 49 | € 17.79 |
| 50 - 99 | € 16.32 |
| 100+ | € 15.47 |
