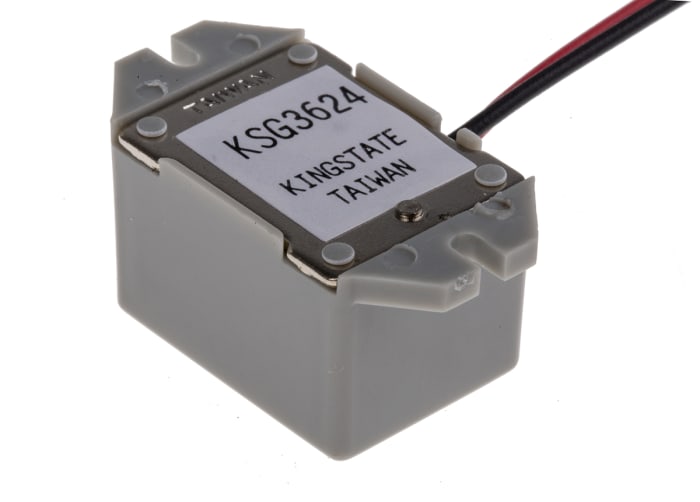

RS PRO 76 dB Flange Continuous Internal Magnetic Buzzer Component 15.55 mm 20 V dc Min 32 mm 17mm 28V dc Max

Name: RS PRO 76 dB Flange Continuous Internal Magnetic Buzzer Component 15.55 mm 20 V dc Min 32 mm 17mm 28V dc Max
Brand: RS PRO
SKU: 6221449
Availability: LimitedAvailability

RS Stock No.: 622-1449Brand: RS PRO

View all in Piezo Buzzers

Technical Document

Specifications

Brand

RS Pro

Product Type

Magnetic Buzzer Component

Mount Type

Flange

Minimum Supply Voltage

20V dc

Maximum Supply Voltage

28V dc

Sound Level

76dB

Drive Type

Internal

Tone Type

Continuous

Maximum Operating Temperature

60°C

Length

32mm

Height

15.55mm

Standards/Approvals

Width

17mm

Country of Origin

Taiwan, Province Of China

Product details

Flanged continuous tone buzzer flying lead

RS Pro 10mA/20VDC Piezo Buzzer with ABS housing with 28AWG flange mounted wire leads, 96dB sound level, 2.8kHz resonant frequency, PCB mount and continuous tone.

Features

Internal circuitry for dc operation
High output levels
Operating Temperature -20°C to +60°C
Flanged mounting buzzer

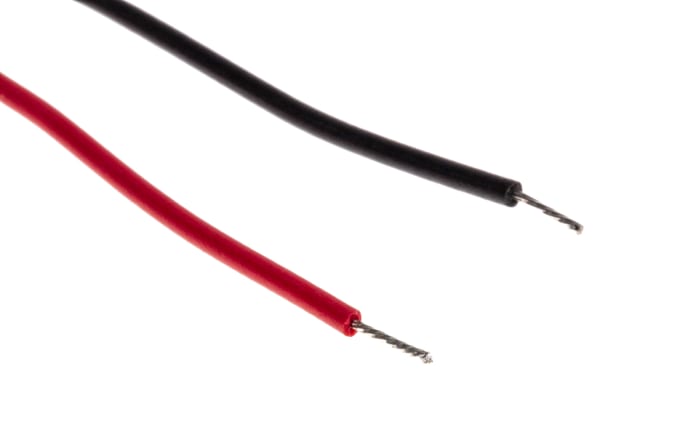

Flying lead connections

Applications

Audio Sensing and Instrumentation
