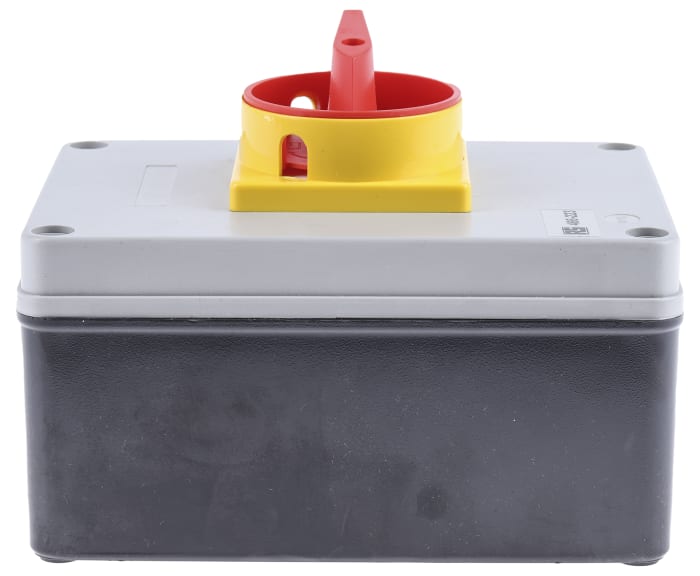

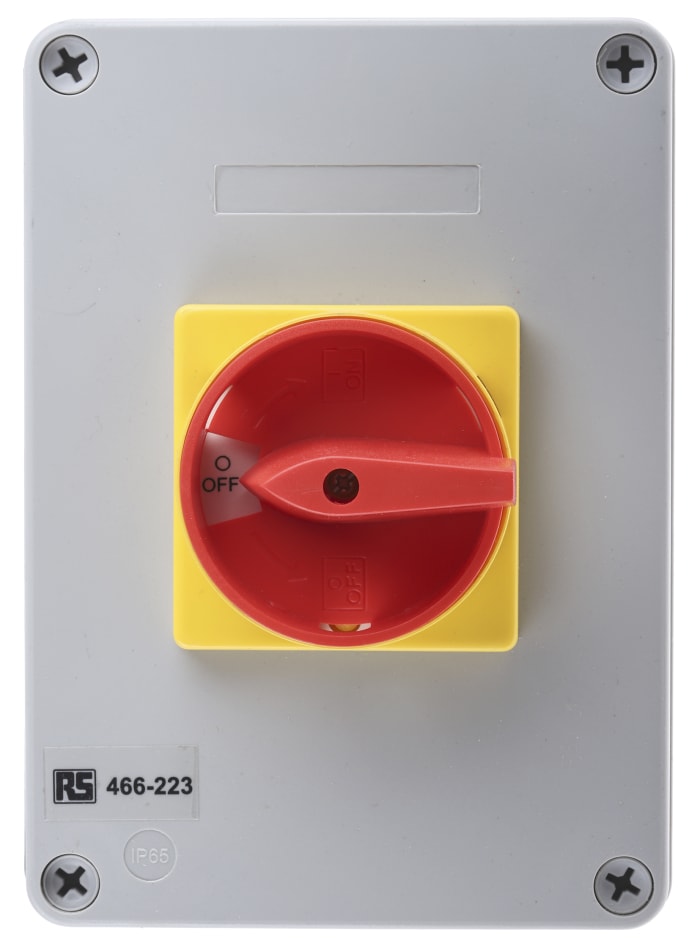

RS PRO 4-Pole DIN Rail Isolator Switch -, IP65, 63A, 22 kW

Name: RS PRO 4-Pole DIN Rail Isolator Switch -, IP65, 63A, 22 kW
Brand: RS PRO
SKU: 0466223
Availability: LimitedAvailability

RS Stock No.: 466-223Brand: RS PRODistrelec Article No.: 30414376

View all in Isolator Switches

Technical Document

Specifications

Brand

RS Pro

Number of Poles

Product Type

Isolator Switch

Mount Type

DIN Rail

IP Rating

IP65

Electrical Phase

Handle Colour

Red

Terminal Type

Wire

Auxiliary Contacts Available

Yes

Series

Switching Current

63A

Minimum Operating Temperature

-25°C

Switching Power

22kW

Padlock Compatibility

Yes

Switching AC Voltage

690V ac

Maximum Operating Temperature

80°C

Depth

90mm

Length

175mm

Hazardous Area Certification

Standards/Approvals

RoHS, EN60947

Width

125mm

Product details

RS PRO Boxed Isolators

Boxed isolator switch disconnector from our high-quality own brand RS PRO is designed for use with low voltage switchgear such as power distribution, load isolation and motor start/stop. The RS PRO range comes in 3, 4 and 6 pole versions and has a power output available up to 90 kW.

Features and Benefits

• Easy installation
• Compact and reliable
• Finger protection
• Wiping contacts
• IP65 product rating (protection from total dust ingress)
• Padlockable handles
• Excellent switching and high short circuit capacity
• Flame retardant material
• Maximum voltage 750V

Applications

• Non-inductive or slightly inductive loads, resistance fumaces
• Squirrel - cage motors: starting, switching off motors during running
• Control of AC electromagnetic loads
• Switching of resistive loads, including moderate overloads
• Switching of motor loads or other highly inductive loads
• Switching of mixed resistive and inductive loads

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Quantity	Unit price
1 - 4	£ 40.67
5 - 9	£ 39.41
10+	£ 37.74

Quantity	Unit price
1 - 4	£ 40.67
5 - 9	£ 39.41
10+	£ 37.74
