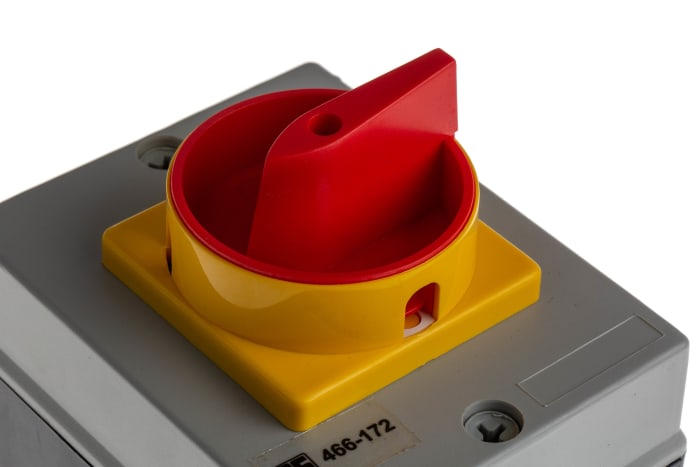

RS PRO 3-Pole DIN Rail Isolator Switch -, IP65, 32A, 11 kW
Technical Document
Specifications
Brand
RS ProNumber of Poles
3
Product Type
Isolator Switch
Mount Type
DIN Rail
IP Rating
IP65
Electrical Phase
3
Handle Colour
Red
Terminal Type
Wire
Auxiliary Contacts Available
Yes
Series
LB
Switching Current
32A
Minimum Operating Temperature
-25°C
Switching Power
11kW
Padlock Compatibility
Yes
Switching AC Voltage
690V ac
Maximum Operating Temperature
80°C
Depth
70mm
Length
125mm
Hazardous Area Certification
No
Standards/Approvals
EN60947, RoHS
Width
100mm
Country of Origin
India
Product details
RS PRO Boxed Isolators
Boxed isolator switch disconnector from our high-quality own brand RS PRO is designed for use with low voltage switchgear such as power distribution, load isolation and motor start/stop. The RS PRO range comes in 3, 4 and 6 pole versions and has a power output available up to 90 kW.
Features and Benefits
• Easy installation
• Compact and reliable
• Finger protection
• Wiping contacts
• IP65 product rating (protection from total dust ingress)
• Padlockable handles
• Excellent switching and high short circuit capacity
• Flame retardant material
• Maximum voltage 750V
Applications
• Non-inductive or slightly inductive loads, resistance fumaces
• Squirrel - cage motors: starting, switching off motors during running
• Control of AC electromagnetic loads
• Switching of resistive loads, including moderate overloads
• Switching of motor loads or other highly inductive loads
• Switching of mixed resistive and inductive loads
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
Standards
EN60947
