RS PRO 25 Way Right Angle 2.77 mm Pitch Through Hole D-Sub Connector, with 4 to 40 UNC Male

Name: RS PRO 25 Way Right Angle 2.77 mm Pitch Through Hole D-Sub Connector, with 4 to 40 UNC Male
Brand: RS PRO
SKU: 2395883
Availability: LimitedAvailability

RS Stock No.: 239-5883Brand: RS PRO

View all in D Sub Connectors

Technical Documents

Specifications

Brand

RS Pro

Number of Contacts

Product Type

D-Sub Connector

Current

Orientation

Right Angle

Mount Type

Through Hole

Connector Gender

Male

D-Sub Shell Size

Mounting Hardware

4 to 40 UNC

Housing Material

Polyethylene Terephthalate

Voltage

350V

Minimum Operating Temperature

-55°C

Termination Type

Solder

Contact Gender

Male

Maximum Operating Temperature

105°C

Standards/Approvals

Contact Material

Brass

Contact Plating

Gold

Pitch

2.77mm

Country of Origin

Taiwan, Province Of China

Product Details

90° PCB, Short American Footprint (8.10mm)

Board locks with integral earthing straps can reduce costs during PCB soldering
Tinned/dimpled shells for effective shielding
Sealed back prevents solder/flux ingress
4-40 UNC inserts are incorporated
Suitable locking screws stock no. 453-886

Value-Added D Type Connectors

Solder bucket connection
Suitable for military, industrial or commercial applications and computer interfacing etc.
For IDC D types, see the 'Speedbloc' range

You may be interested in

Amphenol Communications Solutions Delta D 25 Way Right Angle 2.76 mm Pitch Through Hole D-Sub Connector, with 4-40 UNCBrand: Amphenol Communications Solutions

€ 4.00Each (Exc. VAT)

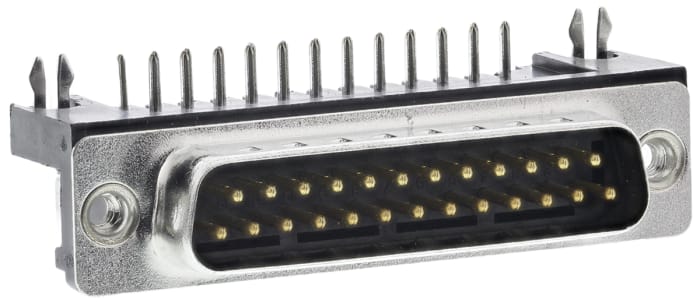

TE Connectivity Amplimite HD-20 25 Way Right Angle Through Hole D-sub Connector Plug, 2.77mm Pitch, with 4-40 UNCBrand: TE Connectivity
