Technical Documents
Specifications
Brand
RS ProProduct Type
Power Inverter
Input Voltage
12V dc
Output Voltage
230V ac
Output Power
200W
Output Connector Type
Centre Positive - Right Angle, USB Type A, Centre Positive - Straight, 8 Tip Connector, 7 Tip Connector, 4-Way Connector, 4 Pin DIN Connector, 2.5 x 5.5 x 12mm, 2.1 x 5.5 x 11mm, 2.1 x 5.5 x 12 mm, 2.1 x 5.5 mm Connector
Output Current
20.83A
Maximum Operating Temperature
40°C
Length
130mm
Depth
43.7mm
Weight
445g
Standards/Approvals
No
Width
90mm
Minimum Operating Temperature
0°C
Protection Features
Short Circuit Protection, Reverse Polarity Protection, Over Voltage Protection, Over Temperature Protection, Overload Protection
Country of Origin
China
Product Details

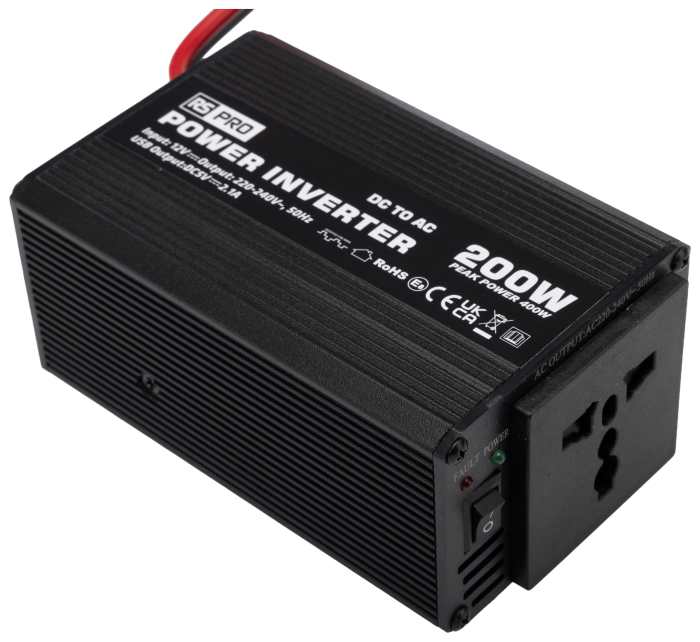

This fixed installation DC-AC power inverter allows you to reroute your car battery for use with AC-powered tools and appliances. The modified sine wave inverter essentially mimics an alternating current, converting DC to AC power.
The 200 W inverter can be manually turned on and off with a switch, while two coloured LED lights indicate that the device is functioning (green) or malfunctioning (red). It comes in a durable anodized aluminium case that maximises heat dissipation. The USB port and universal UK/EU output sockets provide several ways to make a connection.
The car power inverter has protection features like automatic shut-down and a low-voltage alarm, to keep you and your equipment safe from short-circuits, overloads and overheating. This device is handy for powering site lights or tools without the use of mains electricity.
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
Stock information temporarily unavailable.
€ 46.53
€ 46.53 Each (Exc. VAT)
1
€ 46.53
€ 46.53 Each (Exc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 4 | € 46.53 |
| 5 - 9 | € 45.13 |
| 10 - 24 | € 43.75 |
| 25 - 49 | € 42.35 |
| 50+ | € 40.96 |
