Technical Documents
Specifications
Brand
RS ProProduct Type
Isolation Transformer
Primary Voltage
+ 15 – 0 – 230 - 400V ac
Secondary Voltage
24 – 0 – 24V ac
Number of Outputs
1
Power
50VA
Fixing Hole Diameter
4.5mm
Minimum Operating Temperature
-30°C
Maximum Operating Temperature
130°C
Minimum Operating Frequency
50Hz
Length
84mm
Depth
91mm
Weight
1.9kg
Width
84mm
Maximum Operating Frequency
60Hz
Standards/Approvals
IEC61558-2-4
Country of Origin
Poland

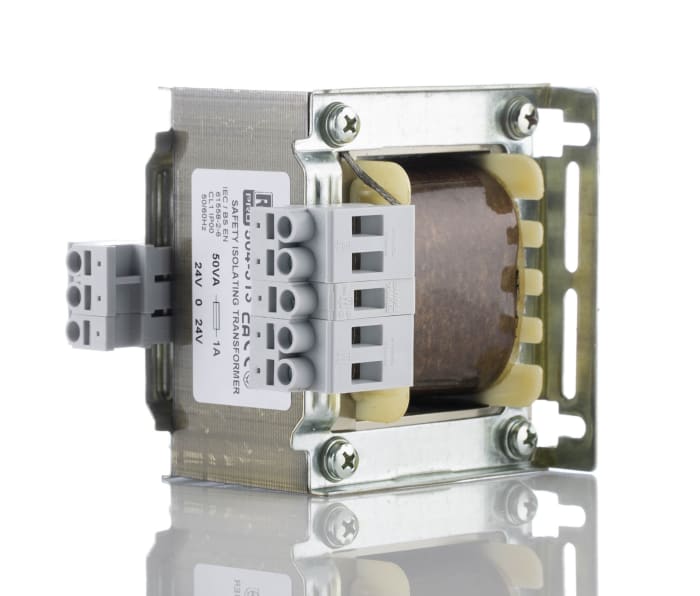

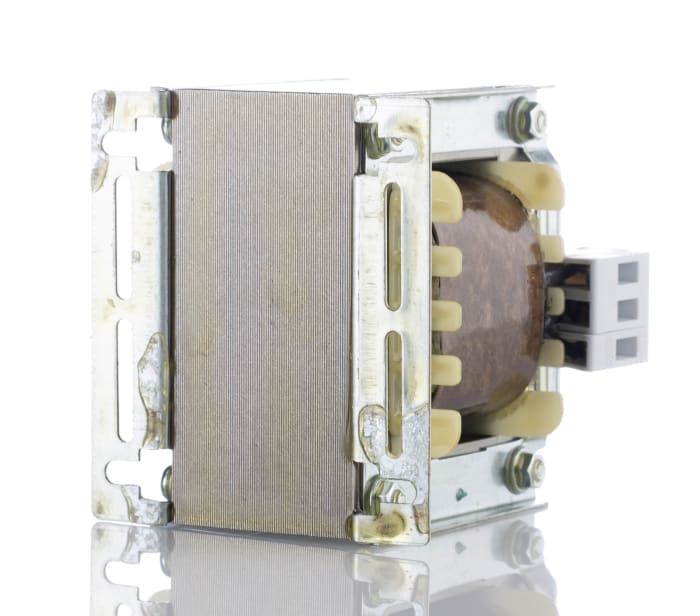

Product Details
Control Panel Primary 230/ 400Vac with +15Vac Tap
"High quality safety and isolating transformers designed for use in control circuits and general applications
Low loss noise laminations
Dual standard primary winding 230 / 400 Vac with +15V tap for input flexibility
Dual secondaries are centre tapped. Earth terminal provided
Varnish impregnated for overall protection against humidity and rusting
Fully shrouded cage clamp terminal with voltage markings
Detailed product specification on permanent label
High efficiency, low regulation design"
BS EN 61558
Stock information temporarily unavailable.
€ 93.92
€ 93.92 Each (Exc. VAT)
1
€ 93.92
€ 93.92 Each (Exc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 24 | € 93.92 |
| 25 - 49 | € 79.18 |
| 50+ | € 78.14 |
