Technical Documents
Specifications
Brand
RF SolutionsProduct Type
Remote Control System
Frequency
868MHz
Modulation
FM
Number of Channels
2
Number of Key Fob Buttons
2
Nominal Supply Voltage
230 V ac
Minimum Operating Temperature
-10°C
Maximum Operating Temperature
50°C
Height
42mm
Depth
112mm
Standards/Approvals
RED 2014/53/EU, RoHS 2002/95/EC, WEEE 2002/96/EC
Width
130mm
Range
Up to 150m
Country of Origin
United Kingdom
Product Details

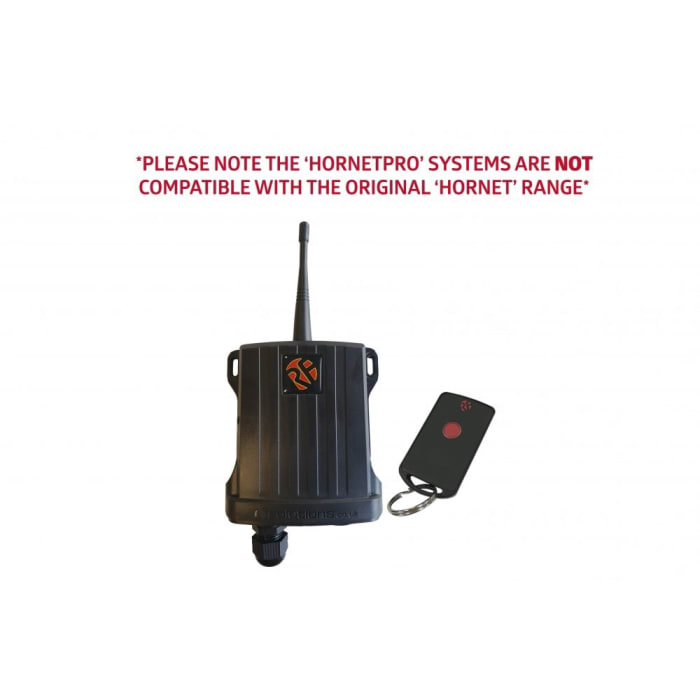

A versatile general purpose Remote Control System for many different applications. Housed in a rugged weatherproof enclosure, The new HORNETPRO system is ideally suited to any remote switch requirement. With upto 4 changeover Relay switch outputs each output can be controlled from any switch on any transmitter. Additional transmitters may be added to the system using the same easy-learn process with-out opening the enclosure. Installation is by screw terminals to the power supply and the output relay contacts. The output relays are activated by the button press on the transmitter encoder.
Stock information temporarily unavailable.
€ 99.15
€ 99.15 Each (Exc. VAT)
1
€ 99.15
€ 99.15 Each (Exc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 4 | € 99.15 |
| 5+ | € 94.19 |
