Technical Documents
Specifications
Brand
RF SolutionsProduct Type
Remote Control System
Frequency
433.92MHz
Modulation
FM
Number of Channels
3
Number of Key Fob Buttons
3
Nominal Supply Voltage
12 V, 24 V dc
Height
32.7mm
Depth
8mm
Standards/Approvals
CE, FCC
Width
59.2mm
Country of Origin
United Kingdom
Product Details

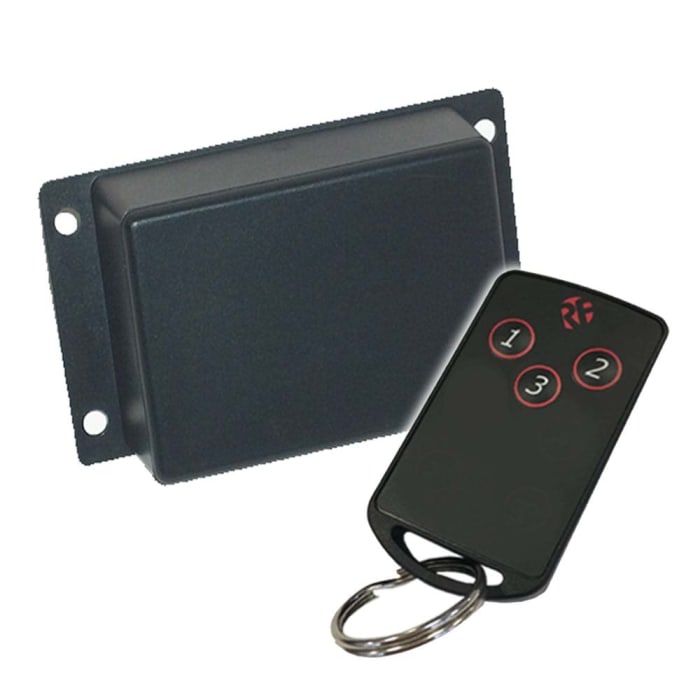

FOBLOQ is a highly secure general purpose remote control, which can be used for controlling many different applications. The system utilises the highly secure KEELOQ code hopping protocol to ensure reliable operation. Easy to install, the receiver is connected using standard 'screw terminals' provided. Power to the receiver 12 or 24Vdc and the output(s) can switch up to 5A at 230Vac. The receiver outputs operate when the transmitter switch is pressed. The outputs can be set to 'momentary' or 'latching' operation. The system is supplied ready to 'plug n play', in addition a further 30 transmitter can be 'learnt' to the receiver.
Stock information temporarily unavailable.
€ 51.24
€ 51.24 Each (Exc. VAT)
1
€ 51.24
€ 51.24 Each (Exc. VAT)
Stock information temporarily unavailable.
1
