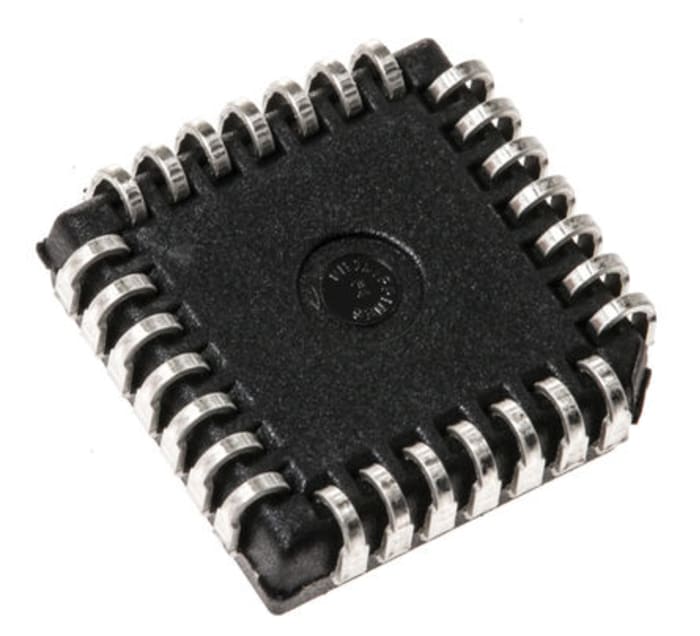

Renesas Electronics CS82C54-10Z, Programmable Timer Circuit 10MHz, 28-Pin PLCC
Technical Document
Specifications
Brand
Renesas ElectronicsMounting Type
Surface Mount
Timer Type
Programmable
Package Type
PLCC
Number of Internal Timers
1
Pin Count
28
Maximum Input Frequency
10MHz
Minimum Operating Supply Voltage
4.5 V
Maximum Operating Supply Voltage
5.5 V
Minimum Operating Temperature
0 °C
Maximum Operating Temperature
+70 °C
Maximum Low Level Output Current
2.5mA
Maximum High Level Output Current
-2.5mA
Maximum Propagation Delay Time @ Maximum CL
100 ns @ 5 V
Dimensions
11.58 x 11.58 x 3.69mm
Length
11.58mm
Height
3.69mm
Width
11.58mm
Product details
82C54 CMOS Programmable Interval Timer, Intersil
8 MHz to 12 MHz Clock Input Frequency
Three Independent 16-Bit Counters
Six Programmable Counter Modes
Status Read Back Command
Binary or BCD Counting
Fully TTL Compatible
Single 5 V Power Supply
Low Power
