Technical Documents
Specifications
Brand
RecomProduct Type
Switching Regulator
Output Voltage 1
5V dc
Output Current
500mA
Mount Type
Through Hole
Number of Outputs
1
Power
2.5W
Efficiency
94%
Ripple and Noise
20mV Pk-Pk
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
85°C
Series
R-78-0.5
Package Type
SIP
Line Regulation
±0.4 %
Depth
10.2mm
Length
11.5mm
Weight
1.9g
Standards/Approvals
RoHS
Width
10.2mm
Maximum Input Voltage
32V dc
MTBF
21098000h
Load Regulation
±0.6 %
Minimum Input Voltage
6.5V
Country of Origin
Taiwan, Province Of China
Product Details

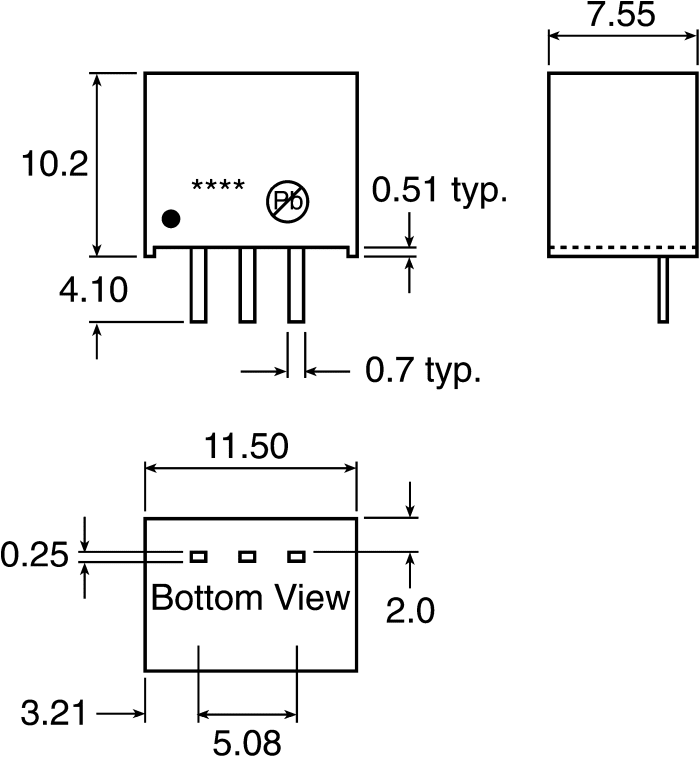

Protect your industrial equipment from under-voltage and over-voltage conditions using this switching regulator from RECOM. Thanks to its broad input voltage range between 6.5 and 32V DC, you'll find it suitable for use in devices using both low and high voltage. As it comes with through-holes in its body, you can mount this component directly in your system without the need for complex tools. Its Compact dimensions of 11.5 (length) x 7.5 (width) x 10.2mm (depth) means it fits easily into low-profile machinery.
When power is supplied from the input system, this regulator converts the voltage to the most suitable level needed for the connected device to function effectively.
The unit has a high MTBF rating of 21,098,000 hours, meaning you can rely on it for long-term use.
