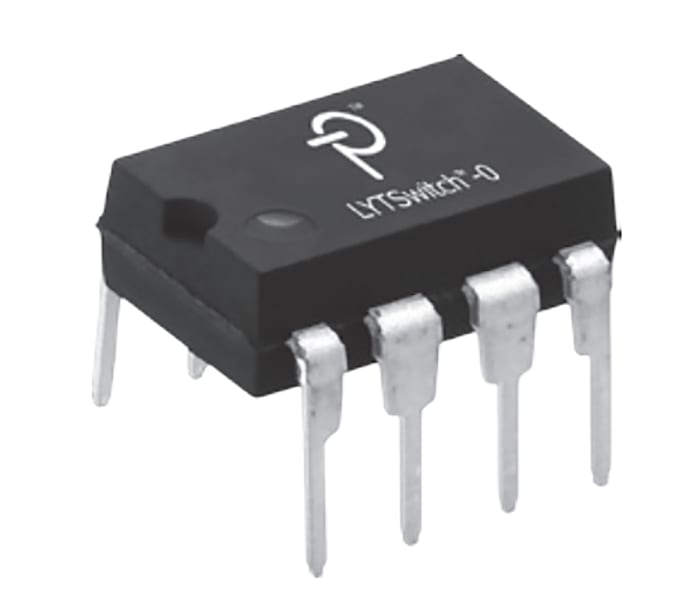

Power Integrations LNK603PG Flyback Converter 1, Off Liner Power Switch IC 7-Pin, DIP-C
Technical Document
Specifications
Brand
Power IntegrationsPower Switch Topology
Flyback Converter
Power Switch Type
Off Liner
Product Type
Power Switch IC
Number of Outputs
5
Number of Inputs
1
Mount Type
Through Hole
Package Type
DIP-C
Maximum Supply Voltage
700V
Pin Count
7
Operating Current
0.28mA
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
150°C
Width
6.6 mm
Height
3.68mm
Length
9.83mm
Standards/Approvals
RoHS, EN55022 Class B
Series
LinkSwitch-II
Automotive Standard
No
Product details
LinkSwitch-II, Power Integrations
The LinkSwitch-II dramatically simplifies low power CV/CC charger designs by eliminating an optocoupler and secondary control circuitry. The device introduces a revolutionary control technique to provide very tight output voltage and current regulation, compensating for transformer and internal parameter tolerances along with input voltage variations.,
Easily meets all global energy efficiency regulations
No-load consumption <200 mW at 230 VAC and down to below 30 mW with optional external bias
On/Off control provides constant efficiency down to very light loads – ideal for CEC and ENERGY STAR 2.0 regulations
No current sense resistors – maximizes efficiency
