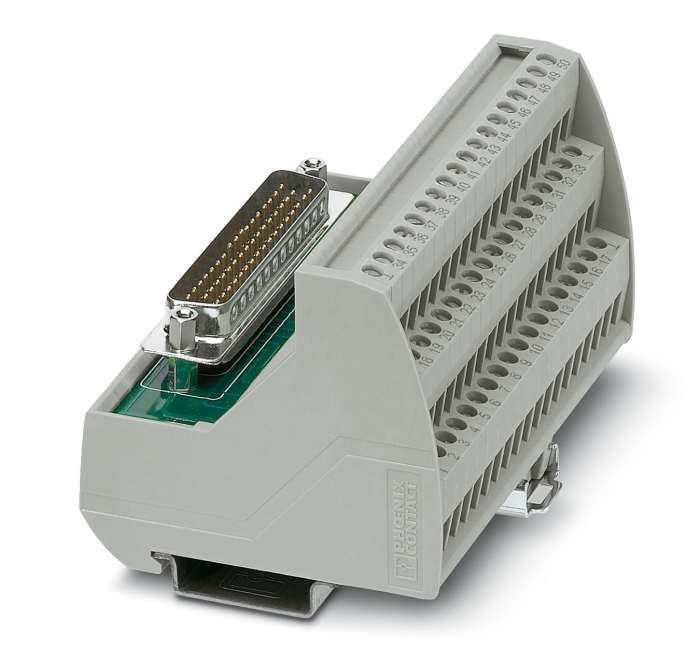

Phoenix Contact 50-Contact Male Interface Module, D-Sub Connector, DIN Rail, 2.5A
Technical Document
Specifications
Brand
Phoenix ContactProduct Type
Interface Module
Gender
Male
Wire Size
26/16 AWG
Current
2.5A
Number of Contacts
50
Orientation
Straight
Connector Type
D-Sub
Mount Type
DIN Rail
Test Proof Voltage
800V ac
Voltage
25 V ac, 60 V dc
Minimum Operating Temperature
-20°C
Cable CSA
0.14 to 1.5 mm²
Maximum Operating Temperature
50°C
Width
42 mm
Depth
45mm
Standards/Approvals
No
Length
156mm
Country of Origin
Germany
Product details
UM 45-D37SUB/S DIN rail interface module
Phoenix Contact brings you a range of DIN rail wiring modules that have been engineered to work with Phoenix's brilliant range of VARIOFACE modules. These connectors are D-sub connectors and feature screw-connection terminal blocks and can accept cables from 26AWG down to 16AWG.
The D-Sub connector is housed in a green, high-density polyamide and the foot of the unit will allow you to connect the module to DIN rails that are NS 35/7.5 in size. They're typically the most commonly used DIN rails in cabinets, so the foot will provide you maximum compatibility
Features and benefits:
- Provides an easy way to incorporate a D-sub connector onto your DIN rail
- Compatible with the huge VARIOFACE range from Phoenix
- Plug housing is secured with 2 4-40UNC retaining screws
- Side components equipped with identification labels
- Metallic connector shell is directly linked to a connection terminal, providing earthing
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
€ 161.53
€ 161.53 Each (Exc. VAT)
1
€ 161.53
€ 161.53 Each (Exc. VAT)
Stock information temporarily unavailable.
1
