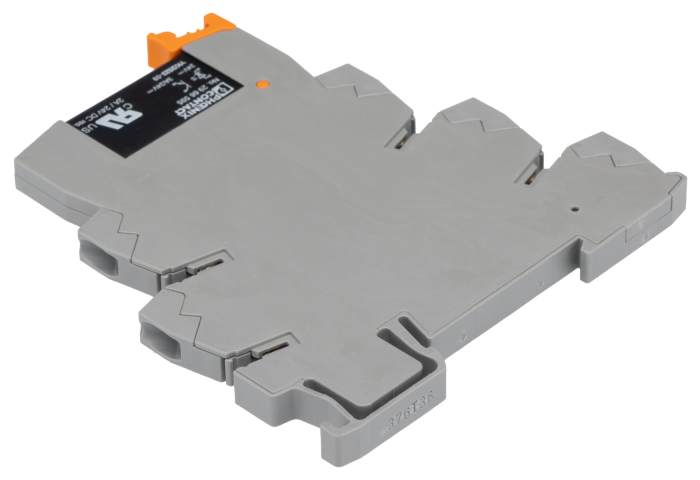

Phoenix Contact PLC-OPT- 24DC/ 24DC/2/ACT Solid State Interface Relay DIN Rail Push-in

Phoenix Contact PLC-OPT- 24DC/ 24DC/2/ACT Series Solid State Interface Relay, 8.5mA Input Current, SPST Contact Configuration - 2900376

This solid state interface relay is designed for mounting on DIN rail, featuring a compact form factor of 94mm in depth, 6.2mm in width, and 80mm in height. It is ideal for controlling output functions in various automation applications and operates efficiently within a temperature range of -25°C to +60°C.

Features & Benefits

• Direct actuator connection reduces installation complexity
• No additional modular terminal blocks needed for setup
• Achieves time savings of up to 60% during installation
• V8 adaptor ensures efficient system cabling integration
• Offers safe isolation between coil and contact
• Compact design saves up to 80% of installation space

Applications

• Utilised in automation systems for output control
• Used in industrial requiring space-efficient solutions
• Suitable for environments with variable temperature conditions
• Designed for integration with various system cabling setups

What kind of input current does this relay consume?

The typical input current at nominal voltage is 8.5mA, which allows it to operate efficiently while ensuring minimal energy consumption.

What are the criteria for connecting conductors to this device?

It accommodates rigid conductors ranging from 0.14mm² to 2.5mm², and flexible conductors with suitable ferrules can also be used within specified limits for reliable connections.

How does this relay handle temperature extremes?

It operates effectively in ambient temperatures from -25°C to +60°C, making it suitable for demanding industrial environments.

What isolation and protection features are included?

The relay features safe isolation according to DIN EN 50178, including reverse polarity protection and a built-in freewheeling diode for enhanced operational reliability.

How quickly does it respond to input signals?

The typical response time is approximately 20μs at nominal voltage, allowing for rapid switching actions in responsive applications.

Phoenix Contact PLC-OPT Universal Interface Relay Modules Series

PLC-Interface relay modules with a push-in connection for DIN rail NS 35/7,5, and plug-in miniature solid-state relay. Featuring a yellow LED light indicator and 1 N/O contact for medium to larger loads, each module in this series also has a 24 V DC input voltage. The gas-tight conductor contacting also fulfils special criteria, such as the vibration test in acc. with the railway standard EN 50155.
This range of interface modules gives you a great choice of easy connection technology, which can be used as either an input or output device. The miniature solid-state relays act as the interface between your automation equipment and system peripherals.

Features and Benefits:

• Efficient connection to system when using a V8 adapter
• Relay module with sage isolation between coil and contact
• Actuator connected directly to the relay module
• Time and space savings with slim design
• Functional plug-in bridges
• Yellow LED operating voltage display
• Fast plug-in connection of the PLC and other peripherals
• Gold-plated AgSnO terminals available
• Solid State versions available

Applications:

PLC-OPT relay units are used in many different applications not limited to power amplification, electrical isolation or for using for voltage adjustment of frequency varying voltage levels.

Complete Line:

The PLC-OPT series is a part of Phoenix Contacts vast and comprehensive portfolio. Complete line is a solution from Phoenix Contact that gives you a full range of products that all go hand-in-hand to make a perfect control cabinet. It covers all bases from connections, switching and measuring all the way to controlling, supplying and automation. Choosing complete line products makes it far more efficient to get a cabinet working.
