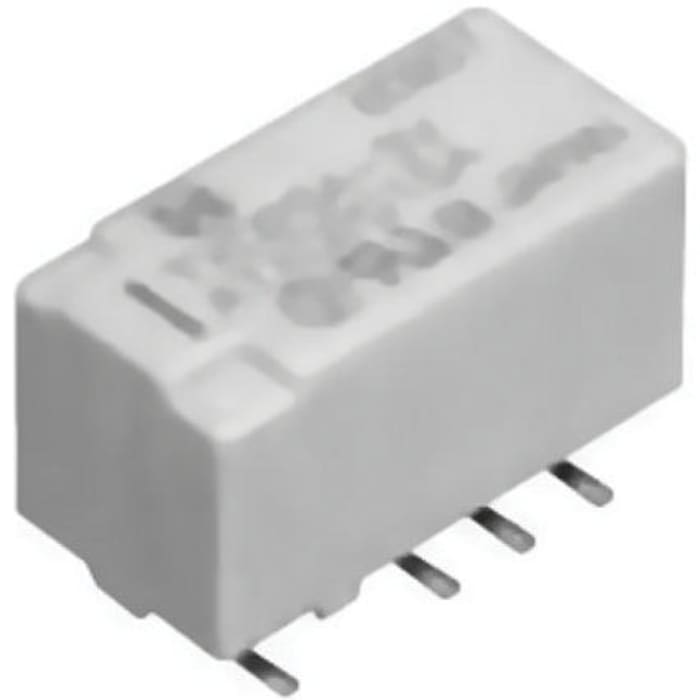

Panasonic DPDT Non-Latching Relay PCB Mount, 24V dc Coil, 2 A
Technical Document
Specifications
Brand
PanasonicCoil Voltage
24V dc
Contact Configuration
DPDT
Mounting Type
PCB Mount
Switching Current
2 A
Terminal Type
Surface Mount
Coil Resistance
4.114 kΩ
Maximum Switching Voltage DC
220V dc
Application
Automotive
Length
15mm
Depth
7.4mm
Height
8.2mm
Dimensions
15 x 7.4 x 8.2mm
Minimum Operating Temperature
-40°C
Coil Power
140mW
Maximum Switching Power DC
60 W
Operating Temperature Range
-40 → +85°C
Special Features
Sealed
Life
100000 (Electrical) cycles, 100000000 (Mechanical) cycles
Maximum Operating Temperature
+85°C
Isolation Coil To Contact
2kV rms
Contact Material
Gold Plated
Country of Origin
Japan
Product details
TX2 Series
These PCB surface mount relays have a high contact capacity of 2A and a high breakdown voltage
High surge and breakdown voltage
High vibration and shock resistance
Sealed construction allows automatic washing
For through hole types see stk no. 178-1918 typically
Ideal for telecommunication applications, measurement, security, medical equipment etc
Approvals
UL, CSA
