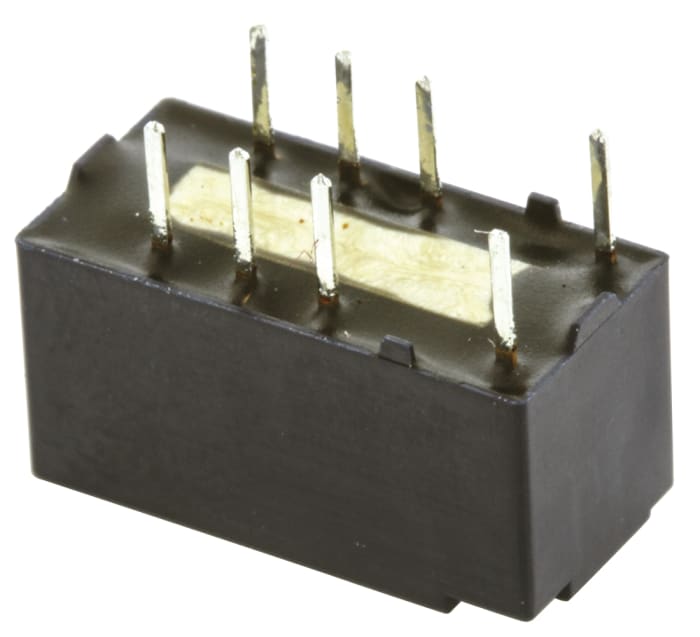

Panasonic DPDT Non-Latching Relay PCB Mount, 12V dc Coil, 2 A
Technical Document
Specifications
Brand
PanasonicCoil Voltage
12V dc
Contact Configuration
DPDT
Mounting Type
PCB Mount
Switching Current
2 A
Terminal Type
Through Hole
Coil Resistance
1.028 kΩ
Application
General Purpose
Length
15mm
Depth
7.4mm
Height
8.2mm
Dimensions
15 x 7.4 x 8.2mm
Minimum Operating Temperature
-40°C
Coil Power
140mW
Maximum Switching Power DC
60 W
Operating Temperature Range
-40 → +85°C
Life
100000000 (Electrical) cycles
Contact Material
Gold Plated
Maximum Operating Temperature
+85°C
Isolation Coil To Contact
2kV rms
Country of Origin
Japan
Product details
TX Series
These compact PCB mount relays have a 2kV breakdown voltage between contact and coil and have an outstanding surge resistance. These PCB relays also offer high contact reliability, outstanding vibration and shock resistance and thier sealed construction allows automatic washing. Typical applications include telecommunication applications, measurement, security, medical equipment etc.
High surge and breakdown voltage
High vibration and shock resistance
Sealed construction allows automatic washing
Compact size (8.2x15x7.4mm)
For SMT types see stk no. 217-2977 typically
Ideal for telecommunication applications, measurement, security, medical equipment etc
Approvals
UL, CSA
