Technical Document
Specifications
Brand
PanasonicTechnology
Polymer
Capacitance
330µF
Voltage
2V dc
Mounting Type
Surface Mount
Equivalent Series Resistance
6mΩ
Tolerance
±20%
Length
7.3mm
Depth
4.3mm
Height
1.4mm
Maximum Operating Temperature
+105°C
Dimensions
7.3 x 4.3 x 1.4mm
Series
SP-Cap LT
Dissipation Factor
6%
Polarised
Polar
Ripple Current
7.5Arms
Minimum Operating Temperature
-55°C
Leakage Current
66 μA
Lifetime
2000h
Product details

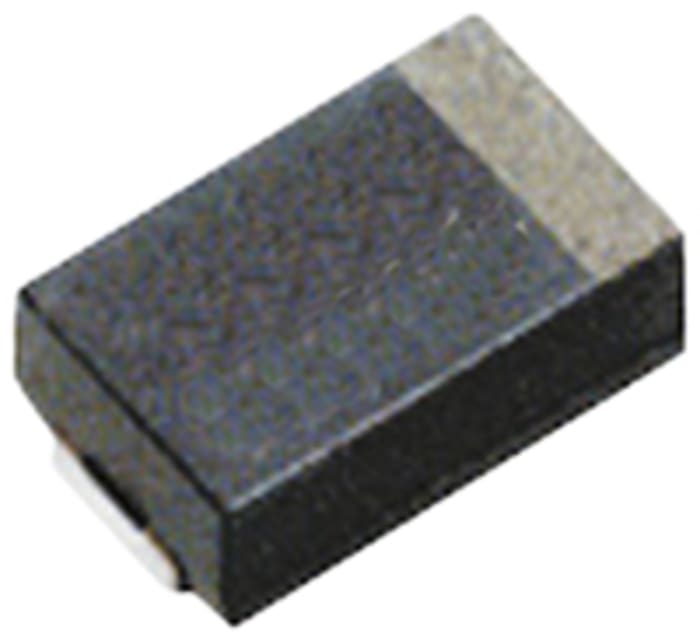

Panasonic Conductive Polymer Aluminium Capacitors, LX, LR, LS and LT series. These general purpose capacitors feature low ESR and ESL.
Low profile (1.0mm (maximum), 1.1mm, 1.4mm height)
Low ESR: 4.5mΩ to 15mΩ (LR, LS and LT series) and 4.5mΩ to 15mΩ for LX series
Low ESL (3-terminals: 50% less than 2-terminals)
Large Capacitance up to 560μF for the LX series
