Technical Documents
Specifications
Brand
PanasonicProduct Type
High Frequency Relay
Maximum Coil Frequency
3GHz
Coil Resistance
720Ω
Contact Resistance
100mΩ
Contact Configuration
SPDT
Terminal Type
Solder
Mount Type
Through Hole
Voltage Standing Wave Ratio VSWR
1.4 (3 GHz) dB
Minimum Operating Temperature
-40°C
Coil Type
Non-Latching
Maximum Operating Temperature
70°C
Height
7.2mm
Coil Power
200mW
Standards/Approvals
No
Series
ARS
Length
14mm
Contact Material
Gold Plated
Country of Origin
Japan
Product Details

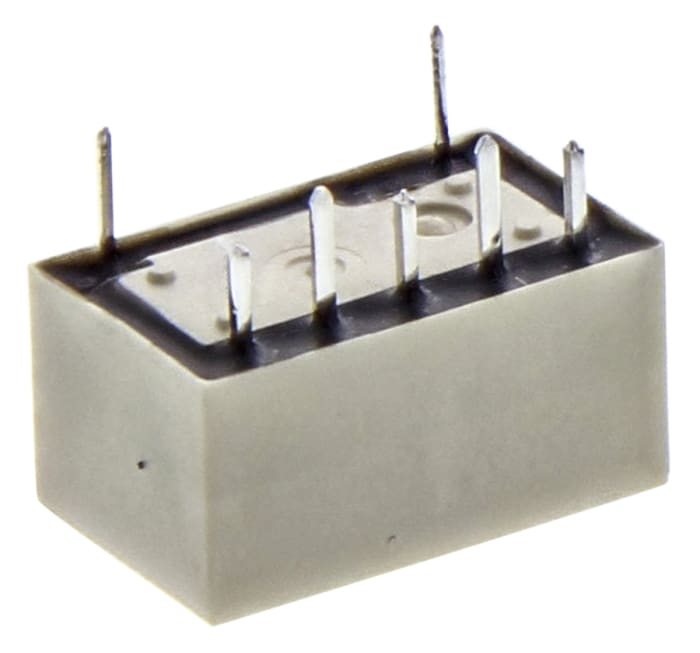

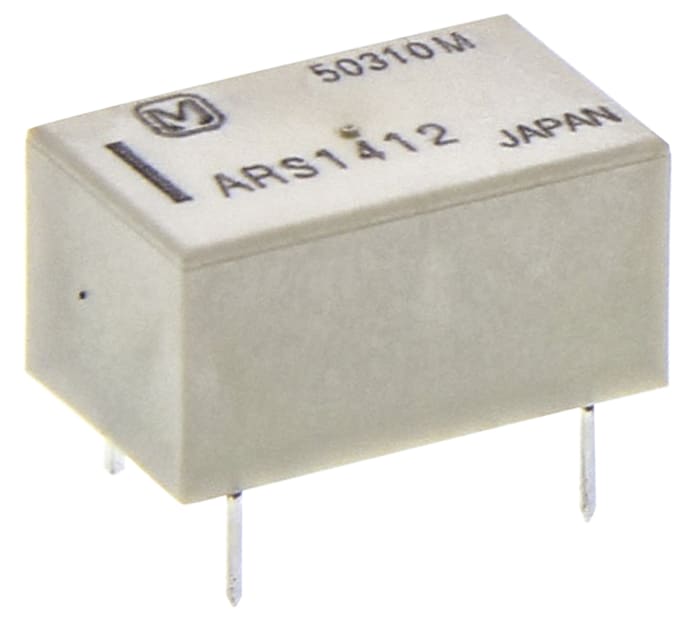

These high frequency microwave relays switch frequencies up to 3GHz at an impedance of 50 or 75 Ohm. They have a compact super miniature design at just 14mm x 8.6mm x 7mm.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
€ 32.53
€ 32.53 Each (Exc. VAT)
1
€ 32.53
€ 32.53 Each (Exc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 9 | € 32.53 |
| 10 - 49 | € 29.74 |
| 50 - 99 | € 28.96 |
| 100 - 249 | € 28.22 |
| 250+ | € 27.42 |
