Technical Documents
Specifications
Brand
PanasonicProduct Type
High Frequency Relay
Maximum Coil Frequency
3GHz
Coil Resistance
720Ω
Contact Resistance
100mΩ
Insertion Loss
0.3dB
Isolation
30dB
Contact Configuration
SPDT
Terminal Type
Solder Pin
Mount Type
Through Hole
Minimum Operating Temperature
-40°C
Voltage Standing Wave Ratio VSWR
1.4 (3 GHz) dB
Maximum Operating Temperature
70°C
Series
ARS
Height
7.2mm
Coil Power
200mW
Length
14mm
Standards/Approvals
No
Contact Material
Gold Plated
Country of Origin
Japan
Product Details

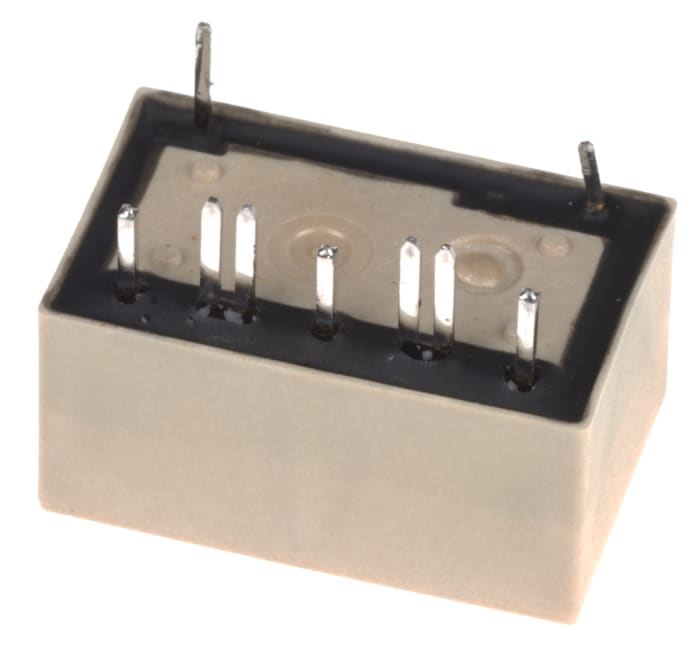

These high frequency microwave relays switch frequencies up to 3GHz at an impedance of 50 or 75 Ohm. They have a compact super miniature design at just 14mm x 8.6mm x 7mm.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
€ 22.22
€ 22.22 Each (Exc. VAT)
1
€ 22.22
€ 22.22 Each (Exc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 9 | € 22.22 |
| 10 - 24 | € 21.20 |
| 25 - 49 | € 20.63 |
| 50 - 99 | € 20.08 |
| 100+ | € 19.57 |
