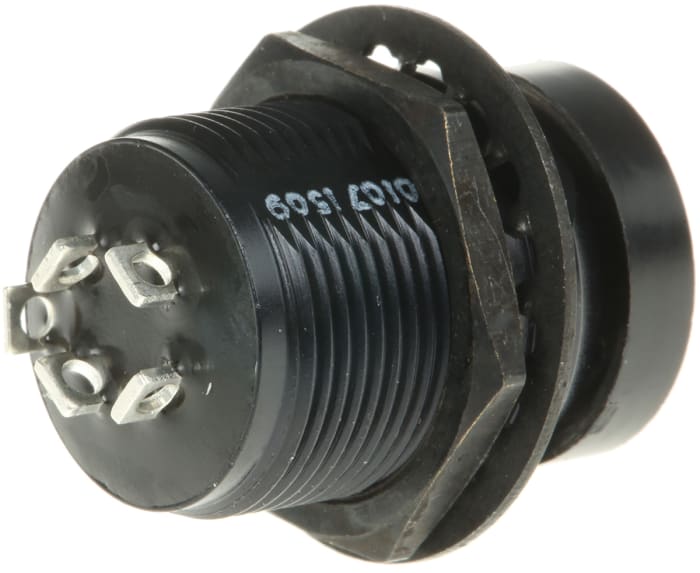

Otto Toggle Switch, SP4T, Solder Terminal
Technical Document
Specifications
Brand
OttoContact Configuration
SP4T
Contact Current Rating
10 mA
Terminal Type
Solder
IP Rating
IP64, IP68S
Actuator Material
Thermoplastic
Minimum Operating Temperature
-55°C
Operating Temperature Range
-55 → +85°C
Maximum Operating Temperature
+85°C
Product details
Trim switches
Biased to centre off, there are four N/O contacts and one common connection
2 axis 4 way(Forward,Back,Left,Right)
Robust design with good tactile feel
2 actuator styles
Operating Temperature: -55°C to +85°C
Contact Rating:1A(Inductive) @ 28Vdc
