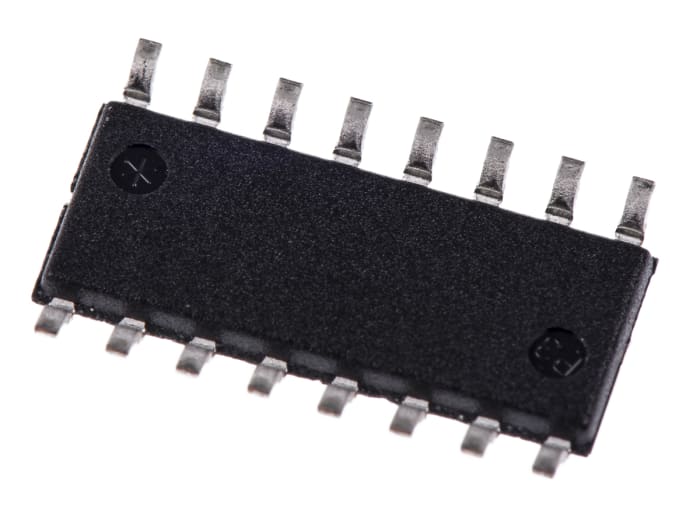

onsemi MC14504BDG, Logic Level Translator Level Translator 4 CMOS, TTL to CMOS, 16-Pin SOIC
Technical Document
Specifications
Brand
onsemiLogic Family
CMOS/TTL
Product Type
Logic Level Translator
Direction Type
Uni-Directional
Maximum Propagation Delay Time @ CL
340ns
Mount Type
Surface
Number of Elements per Chip
4
Package Type
SOIC
Output Type
CMOS
Pin Count
16
Logic Function
Level Translator
Maximum Low Level Output Current
8.8mA
Maximum High Level Output Current
-8.8mA
Minimum Supply Voltage
0.5V
Maximum Supply Voltage
18V
Translation
CMOS, TTL to CMOS
Minimum Operating Temperature
-55°C
Maximum Operating Temperature
125°C
Length
19.55mm
Standards/Approvals
No
Series
MC14504
Width
4 mm
Height
3.43mm
Automotive Standard
AEC-Q100
Country of Origin
Czech Republic
Product details
4000 Series Logic Level Translators, Voltage Translators, ON Semiconductor
4000 CMOS Logic Family, ON Semiconductor
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
€ 19.61
€ 0.409 Each (In a Tube of 48) (Exc. VAT)
48
€ 19.61
€ 0.409 Each (In a Tube of 48) (Exc. VAT)
Stock information temporarily unavailable.
48
| Quantity | Unit price | Per Tube |
|---|---|---|
| 48 - 192 | € 0.409 | € 19.61 |
| 240 - 912 | € 0.35 | € 16.78 |
| 960 - 2352 | € 0.34 | € 16.34 |
| 2400+ | € 0.332 | € 15.95 |
