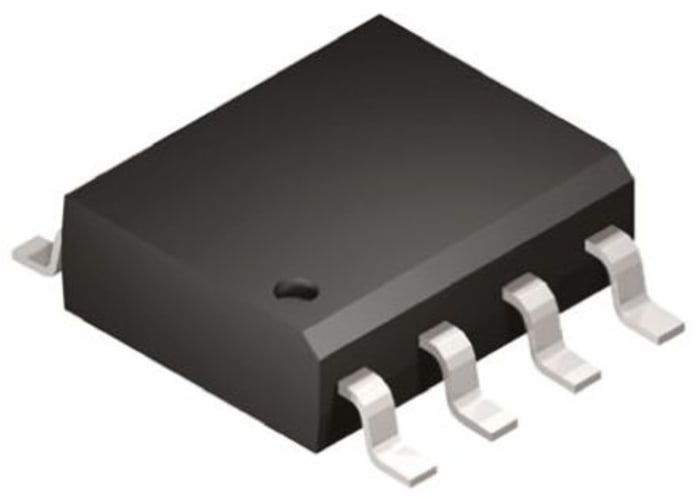

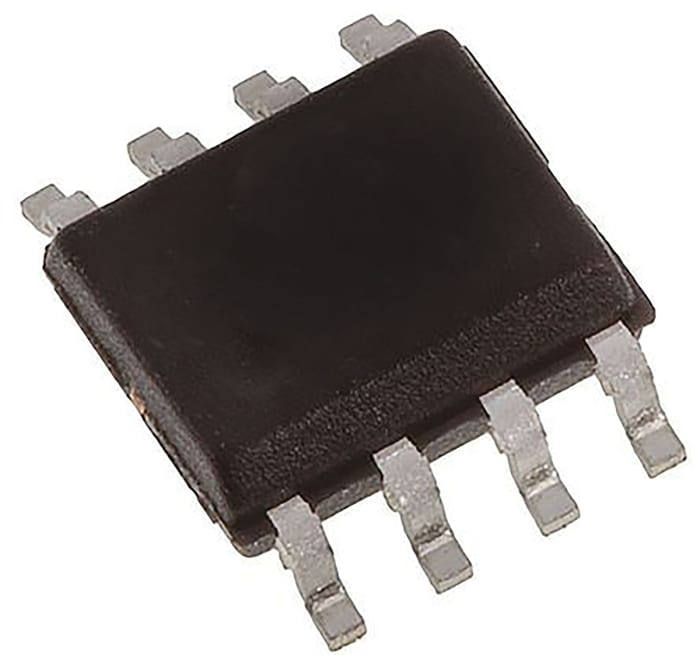

onsemi 3-Channel Differential Line Receiver, ECL, 8-Pin SOIC

RS Stock No.: 908-0743PBrand: onsemiManufacturers Part No.: MC100EP16VADG
brand-logo
View all in Line Interface ICs

Technical Document

Specifications

Brand

onsemi

Logic Family

MC100

Product Type

Differential Line Receiver

Logic Function

Driver & Receiver

Number of Channels

3

Input Type

Differential

Output Type

ECL

Mount Type

Surface

Package Type

SOIC

Minimum Supply Voltage

6V

Pin Count

8

Maximum Supply Voltage

6V

Maximum High Level Output Current

50mA

Maximum Low Level Output Current

100mA

Maximum Propagation Delay Time @ CL

390ps

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Width

6.2 mm

Height

1.75mm

Length

5mm

Standards/Approvals

No

Supply Current

38mA

Automotive Standard

No

Product details

Clock Buffers, ON Semiconductor

Clock Generators/Buffers

View all in Line Interface ICs
