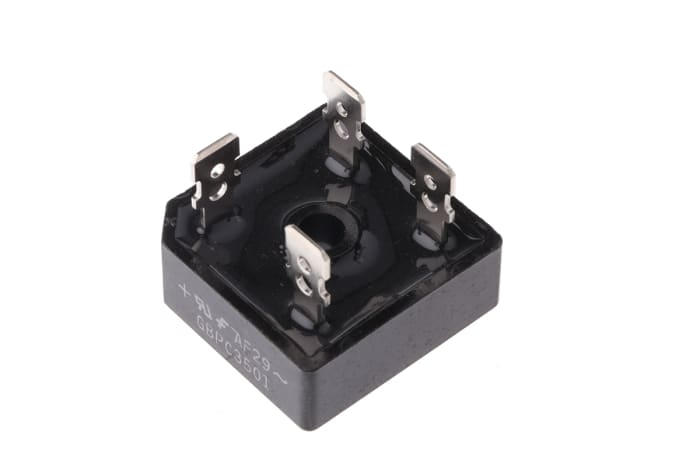

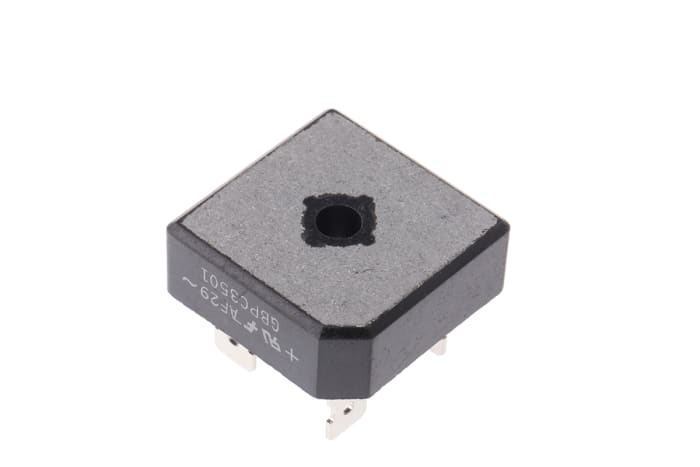

onsemi Bridge Rectifier, 100 V 400 A, 4-Pin Single

Brand

Product Type

Bridge Rectifier

Peak Reverse Repetitive Voltage Vrrm

100V

Mount Type

Screw

Package Type

GBPC

Number of Phases

1

Pin Count

4

Configuration

Single

Maximum Operating Temperature

150°C

Forward Current If

35A

Minimum Operating Temperature

-55°C

Peak Non-Repetitive Forward Surge Current Ifsm

400A

Peak Forward Voltage Vf

1.1V

Peak Reverse Current Ir

500μA

Height

11.23mm

Length

29mm

Standards/Approvals

No

Width

29mm

Series

GBPC35

Automotive Standard

No
