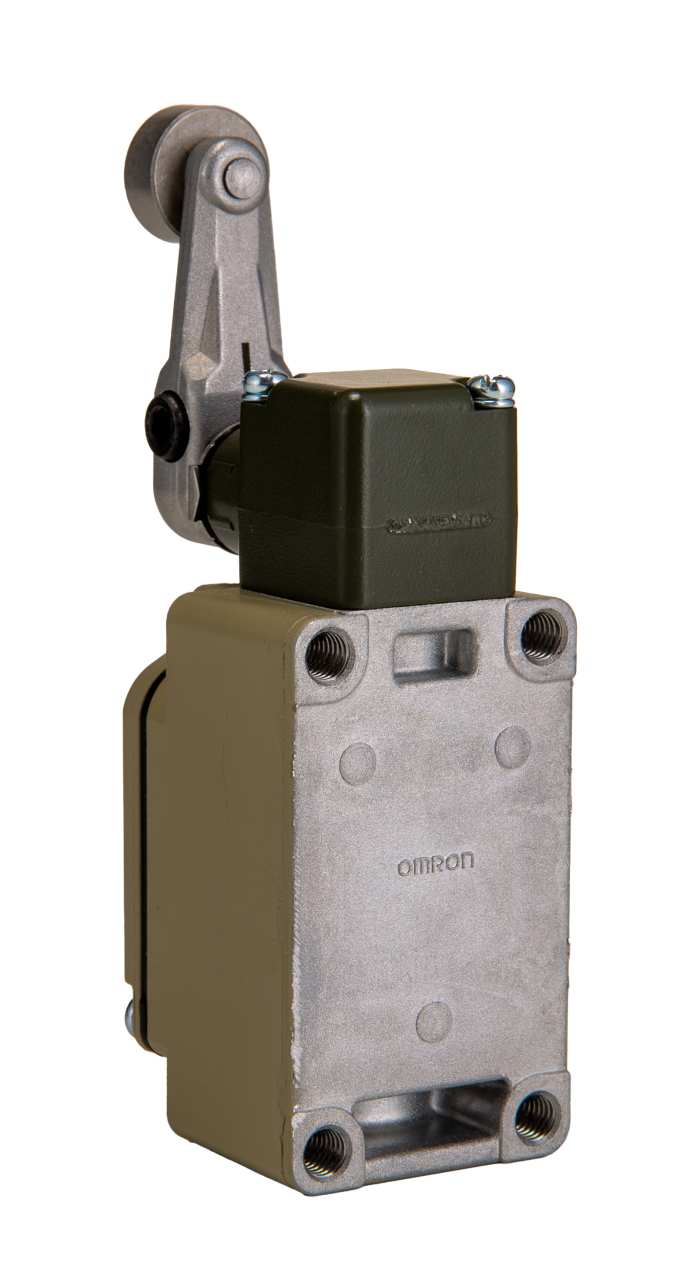

Omron WL Series Roller Lever Limit Switch, DPDB, IP67, Metal Housing, 250V

Omron Series WL Limit Switch, DPDT Pole and Throw Configuration, 2A Maximum Current - WL-CA2GN

This limit switch is designed for precise control and reliability in various applications. With a robust metal housing, this model ensures durability and high performance. The device features a roller lever actuator and offers a dual pole, dual throw configuration, making it suitable for complex tasks in automation and mechanical systems.

Features & Benefits

• High durability rated for 15 million operations
• IP67 rating ensures protection against dust and water
• Supports maximum current of 2A for efficient performance
• Operates effectively within a temperature range of -10 °C to +80 °C
• Ideal for critical applications requiring a double break actuator

Applications

• Ideal for industrial automation systems
• Utilised in conveyor belt control
• Suitable for manufacturing and machinery protection
• Employed in robotics for precise movement detection

How does the IP67 rating benefit usage in harsh environments?

The IP67 rating offers full protection against dust ingress and water, ensuring reliable operation even in challenging conditions like moisture-laden or dirty environments.

What is the significance of a double break actuator in this switch?

The double break actuator enhances safety by ensuring the circuit is fully disconnected before maintenance, minimising the risk of accidental activation.

What maximum voltage ratings should I consider when integrating this device?

It supports a maximum AC voltage of 250V and a DC voltage of 48V, making it versatile for various electrical systems.

How long can this limit switch be expected to function effectively?

The switch boasts a mechanical life of 15 million operations, providing long-term reliability in demanding applications.

What mounting orientations are supported for this limit switch?

The device is designed for side mounting, allowing flexible installation options depending on the specific application requirements.

WL Series General Purpose Limit Switch

• Oil-tight, waterproof and dustproof cast aluminium body construction to IP67
• Two sets of snap action contacts: N/C and N/O
• Contact rating: 10A (I_th250Vac) max. 600ac, 250Vdc
• Four position turret head
• Operating temperature range: - 10° to +80°C
• Set position indicator plate for easy maintenance
• Conduit entry PG13.5

Approvals

UL, CSA
