Technical Documents
Specifications
Brand
OmronProduct Type
Micro Switch
Actuator Type
Long Leaf Lever
Terminal Type
Tab
Housing Material
Thermoplastic Resin, Thermosetting Resin
Contact Configuration
SPDT
IP Rating
IP40
Operating Force
1.96N
Minimum Operating Temperature
-25°C
Maximum Operating Temperature
80°C
Microswitch Type
Miniature
Contact DC Voltage
250V dc
Contact AC Voltage
250V ac
Mechanical Life
50000000Operations
Hazardous Area Certification
No
Standards/Approvals
EN610581, VDE 060, UL1054, TÜV Rheinland EN610581, SEV, SEMKO EN610581, DEMKO, CSA C. .55
Series
V
Product Details

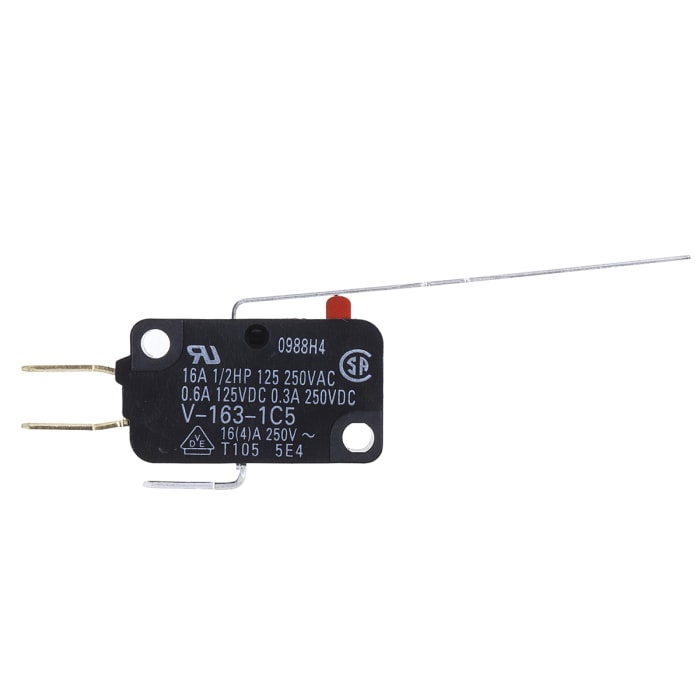

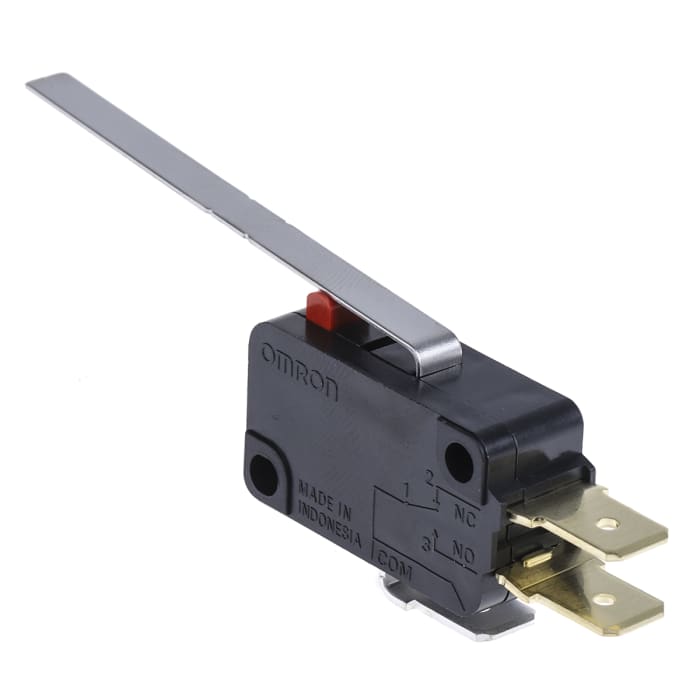

The Omron V16 series miniature microswitch has a long hinge lever actuator and a contact rating of 16A at 250VAC. This is a highly reliable SPDT contact configuration microswitch has silver alloy contact material. It can be used for interrupting current when doors are opened or closed.
