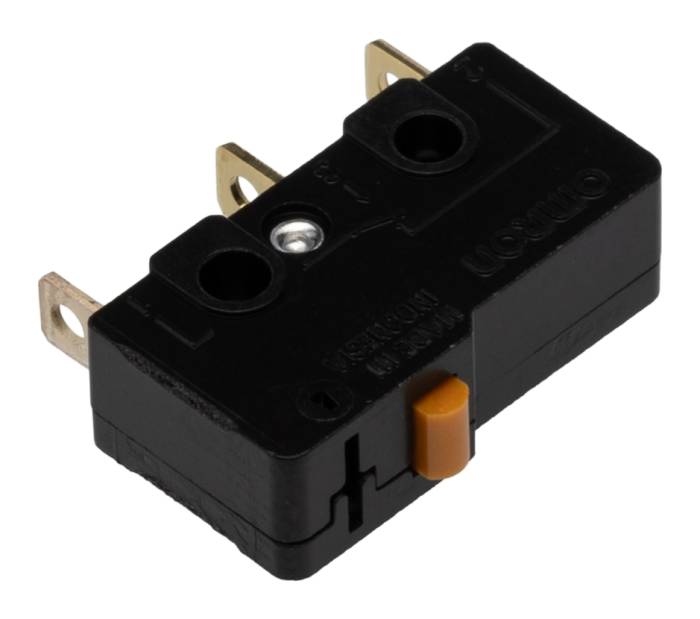

Aratas Pin Plunger Micro Switch, Solder Terminal, 100mA, 250 V ac, SPDT, IP40

Name: Aratas Pin Plunger Micro Switch, Solder Terminal, 100mA, 250 V ac, SPDT, IP40
Brand: Omron
SKU: 6866825
Availability: LimitedAvailability

RS Stock No.: 686-6825Brand: OmronManufacturers Part No.: SS-01Distrelec Article No.: 11083572

View all in Micro Switches

Technical Documents

Specifications

Brand

Omron

Product Type

Micro Switch

Actuator Type

Pin Plunger

Terminal Type

Solder

Switch Contact Current

100mA

Contact Configuration

SPDT

IP Rating

IP40

Operating Force

1.47N

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

85°C

Contact AC Voltage

250V ac

Microswitch Type

Subminiature

Mechanical Life

30000000Operations

Hazardous Area Certification

Standards/Approvals

RoHS

Series

Product Details

Omron SS Subminiature Basic Switch (100 mA)

Incorporating simple and stable two split springs which enable a long service life (30,000,000 operations)
A variety of models with low operating force to high operating force are available
Solder, quick connect terminals (#110) and PCB terminals are available
