Technical Documents
Specifications
Brand
OmronProduct Type
Limit Switch
Actuator Type
Roller Lever
IP Rating
IP65
Contact Configuration
SPDT
Housing Material
Metal
Contact Type
Snap Action
Terminal Type
Screw
Series
HL-5000
Minimum Operating Temperature
-5°C
Switching AC Voltage
250V ac
Maximum Operating Temperature
65°C
Depth
33mm
Length
110mm
Standards/Approvals
EN, CSA, CE, CCC, UL, RoHS
Width
53mm
Hazardous Area Certification
No
Mechanical Life
10000000Operations
Mounting Orientation
Front
Country of Origin
China
Product Details

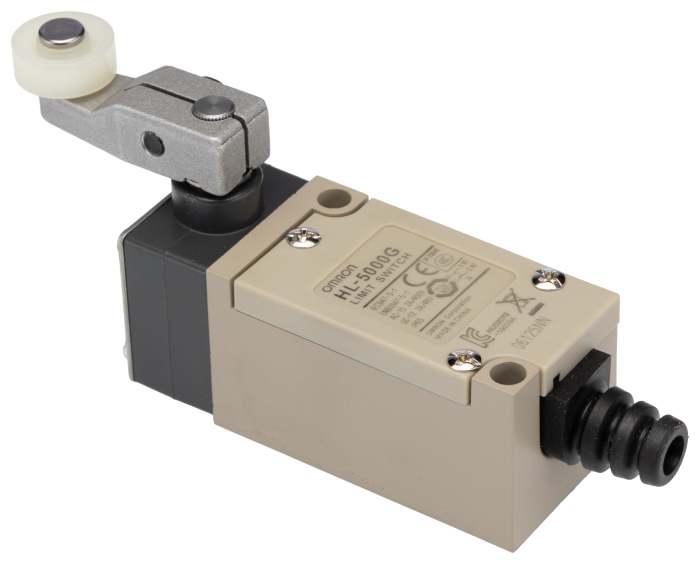

This limit switch is a fundamental component designed for various automation applications. Offering a robust roller lever actuator, this model ensures reliable performance across different environments. With a high degree of protection rated at IP65, it is well-suited for operations in potentially harsh conditions, ensuring long-lasting functionality in your automated systems.
The device operates effectively between temperatures of -5°C and +65°C, providing flexibility in diverse environments while ensuring proper function within specified humidity levels.
The roller lever actuator allows smooth and efficient interaction with moving components, adaptable to various angles for specific applications, enhancing usability in automatic systems.
It supports a maximum current of 5A AC and 400mA DC, making it capable of handling a wide range of loads efficiently, indicative of its high current capabilities in automation contexts.
