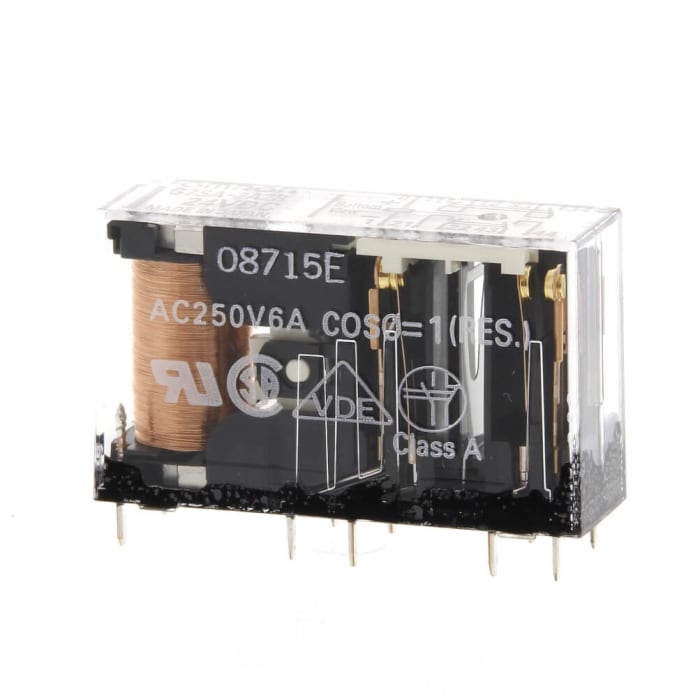

Omron PCB Force Guided Relay, 24V dc Coil Voltage, 4-Pole

OMRON Force Guided Relay, 4000V AC Dielectric Strength, PCB Mounting - G7S Series - G7SA-3A1B DC24

Need a way to keep tabs on the circuits in your machinery? Count on this force guided relay from OMRON. It has a safety design that monitors your system and powers it down in the event of a hazard, helping prevent accidents. The gold-plated silver contacts are highly conductive and corrosion-resistant, so you get reliable performance even in damp settings. To support long-term use, flux-tight sealing prevents damage from external contaminants. A low current rating of 15mA means the component is an energy-saving choice for use anywhere from lighting systems to automated doors.

Features & Benefits

• Performs reliably in a wide operating temperature range between -40°C and +85°C
• Through-hole termination achieves a secure and vibration-proof attachment to machinery
• Light weight of 22g so it won't strain your PCB
• 4-pole configuration to streamline your equipment
• Insulation resistance of 1000MΩ for protection against electric shocks

Applications

• Automotive industry
• Power plants
• Chemical processing factories

What's the lifespan of this relay?

The component has a mechanical lifecycle of 10 million operations, so you can count on it to perform for the long run.

6A Relays with Forcibly Guided Contacts - G7SA

The slimline G7SA relay family with forcibly guided contacts is available as a four- or six-pole type in various contact combinations and offers reinforced insulation. Terminals are arranged for easy PCB layout. It can be soldered directly to a PCB or used together with the P7SA sockets for panel installations.

• Forcibly guided contacts
• 6A at 240VAC and 6A at 24VDC for resistive loads
• Reinforced insulation between inputs and outputs and poles
• 4- and 6-pole relays available
• Sealing: flux-tight
• Operating temperature: -40 to 85C

Standards

Conforms to EN 50205

Approvals

UL, CSA
