Technical Documents
Specifications
Brand
OmronProduct Type
Solid State Relay
Maximum Load Current
0.12A
Mount Type
Surface
Maximum Load Voltage
100V
Minimum Load Voltage
30V
Series
G3VM
Contact Configuration
SPST
On State Resistance
0.1Ω
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
110°C
Height
2mm
Standards/Approvals
RoHS
Width
1.45mm
Length
1.7mm
Output Type
MOSFET
Off State Leakage Current
1000nA
Capacitance
30pF
Country of Origin
Japan
Product Details

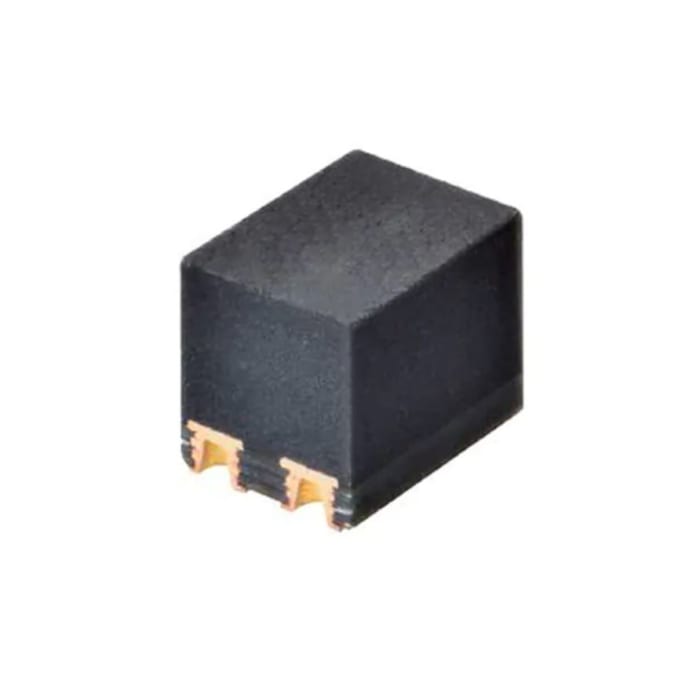

The Omron G3VM MOS FET relays has S-VSON 4-pin Package with high current and low-ON resistance. The G3VM MOS FET relays relay has applications such as Semiconductor test equipment, Communication equipment, Test & Measurement equipment and Data loggers.
Stock information temporarily unavailable.
€ 4,371.01
€ 8.742 Each (On a Reel of 500) (Exc. VAT)
500
€ 4,371.01
€ 8.742 Each (On a Reel of 500) (Exc. VAT)
Stock information temporarily unavailable.
500
