Technical Documents
Specifications
Brand
OmronCoil Voltage
5V dc
Contact Configuration
SPDT
Mounting Type
PCB Mount
Switching Current
5A
Latching
Yes
Terminal Type
Through Hole
Maximum Switching Voltage AC
380V ac
Maximum Switching Voltage DC
125V dc
Length
29mm
Coil Resistance
30 (Set Coil) Ω, 42 (Reset Coil) Ω
Maximum Operating Temperature
+70°C
Depth
13mm
Height
25.5mm
Contact Material
Silver
Minimum Operating Temperature
-40°C
Maximum Switching Power DC
150 W
Maximum Switching Power AC
1.25 kVA

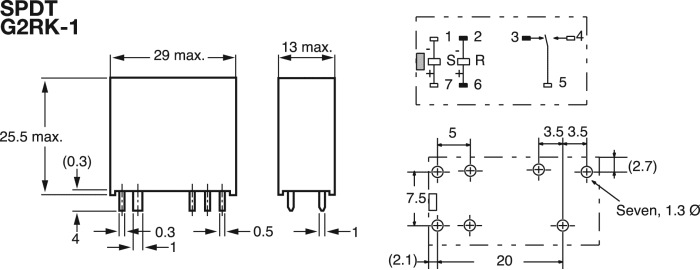

Dimensions
29 x 25.5 x 13mm
Application
Power
