Omron PCB Power Relay, 12V dc Coil, 16A Switching Current, SPDT

G2R-1-E 12DC High Capacity PCB Non-Latching Power Relay.

The Omron G2R-1-E 12DC High capacity power relay is a single pole PCB terminal relay with an excellent safety design and dielectric strength 5000 V between the coil and contacts. This general purpose relay also provides a surge resistance of 10000 V plus is RoHS compliant.

Features and Benefits G2R-1-E 12DC High Capacity Non-Latching Relay.

• PCB Terminal.
• High Capacity relay.
• Flux protection.
• SPDT AC/DC Contacts.
• 1 Pole NO/NC (normally open/normally closed).

Coil Ratings.

• Rated voltage 12 V dc.
• Rated current 43.6 mA.
• Coil resistance 275 Ω.
• Must operate voltage 70% max.
• Must release voltage 15% minimum.
• Maximum voltage 170% at 23°C.

Standard Relay.

• Contact resistance 30 mΩ max.
• Operate time 15 ms max.
• Release time DC – 5 ms max.
• Vibration resistance – destruction 10 to 55 to 10 Hz (0.75 mm single amplitude) (1.5 mm double amplitude).
• Vibration resistance – malfunction 10 to 55 to 10 Hz (0.75 mm single amplitude) (1.5 mm double amplitude).
• Shock resistance – destruction 1000 m/s².
• Shock resistance – malfunction 200 m/s² (energised) 100 m/s² (not energised).
• Operating temperature -40°C to 70°C (no icing).
• Weight 17 g (approx).

G2R Series

• General purpose PCB power relay used in various domestic and commercial applications
• 8mm creepage/clearance

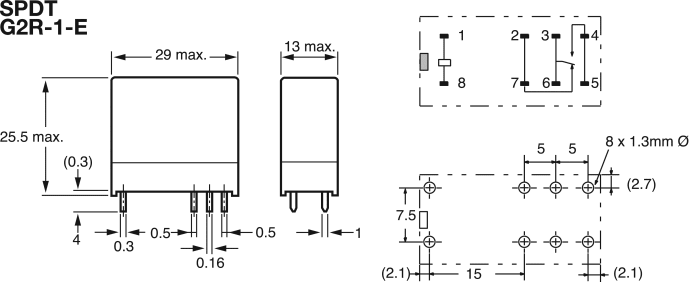

• H25.5 x W13 x D29 mm

Approvals

UL508; CSA22.2; EN 61810-1; SEV; SEMKO
