Technical Documents
Specifications
Brand
OmronProduct Type
Photoelectric Sensor
Sensor Style
Block
Detection Type
Through Beam
Output Type
PNP
Terminal Type
M12 Connector
Maximum DC Voltage
30V dc
Interface Type
Pre-Wired
Light Source
Red LED
Minimum Operating Temperature
-25°C
IP Rating
IP67
Materials Detected
Opaque
Maximum Current
20mA
Maximum Operating Temperature
55°C
Standards/Approvals
IEC
Response Time
0.5ms
Hazardous Area Certification
No
Series
E3S
Housing Material
Polybutylene Terephthalate
Mount Type
Bracket
Detection Range
7 m
Product Details

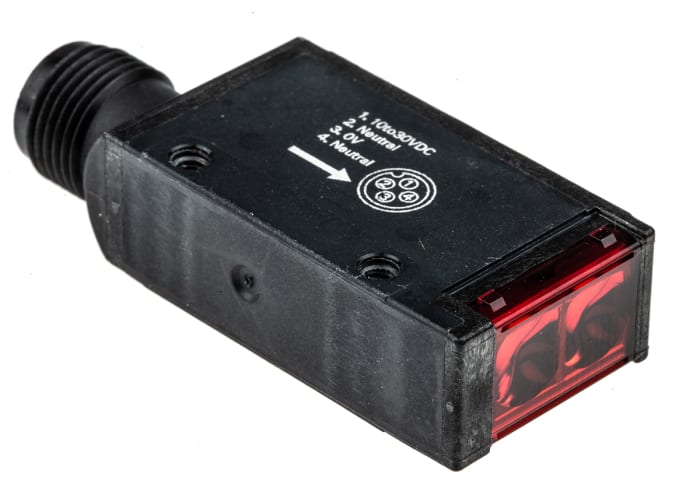

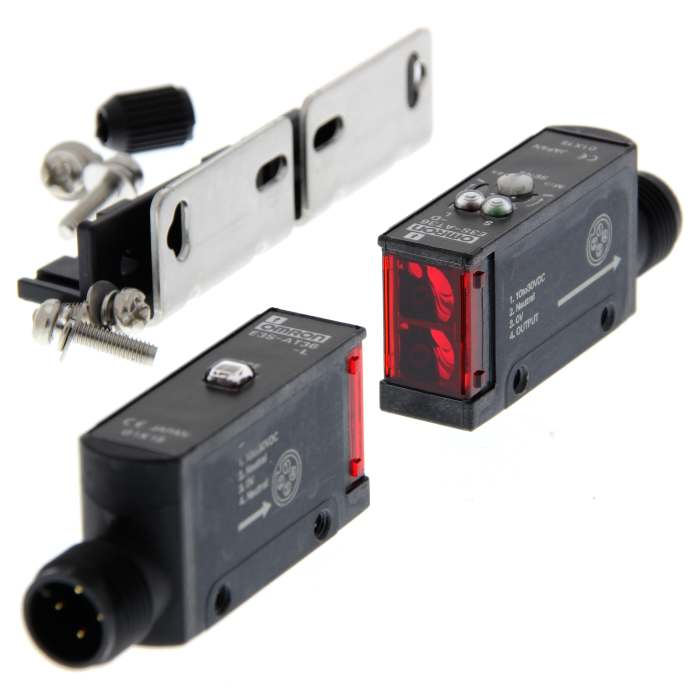

This photoelectric sensor is designed for precise detection in industrial environments. Encased in a robust PBT housing, this sensor features a through beam detection method, ensuring reliable performance at a detection range of up to 7m. With an IP67 rating, it is suited for challenging conditions, operating effectively in temperatures ranging from -25 °C to +55 °C. The sensor utilises a red LED light source, making it a practical choice for various applications requiring accurate sensing.
The sensor features an M12 connector, which allows for easy and secure connections in various installations, ensuring reliable electrical connections in demanding environments.
With a wide operating temperature range from -25 °C to +55 °C, the sensor maintains functionality in harsh conditions, making it suitable for outdoor and high-temperature environments.
Utilising a through beam detection method, this sensor offers superior reliability for the detection of objects, helping to ensure consistent performance in high-speed applications.
The IP67 rating indicates that the sensor is dust-tight and can withstand immersion in water up to 1 metre, making it Ideal for use in environments where exposure to moisture and dust is a concern.
