Omron D4NS Series Solenoid Interlock Switch Power to Lock/Unlock
Technical Document
Specifications
Brand
OmronProduct Type
Solenoid Interlock Switch
Actuator Included
No
Series
D4NS
Safety Contacts
1 NO/2 NC
Conduit Entry
G 1/2
Terminal Type
Screw
Power to Lock/Unlock
Yes
Contact DC Voltage
250V dc
Contact Current
10A
Contact AC Voltage
240V ac
Housing Material
Plastic
Depth
96mm
Length
31mm
Hazardous Area Certification
No
Standards/Approvals
CSA C22.2 No.14, CE, UL508, UL, EN60947-5-1
Width
96mm
IP Rating
IP67
Product details

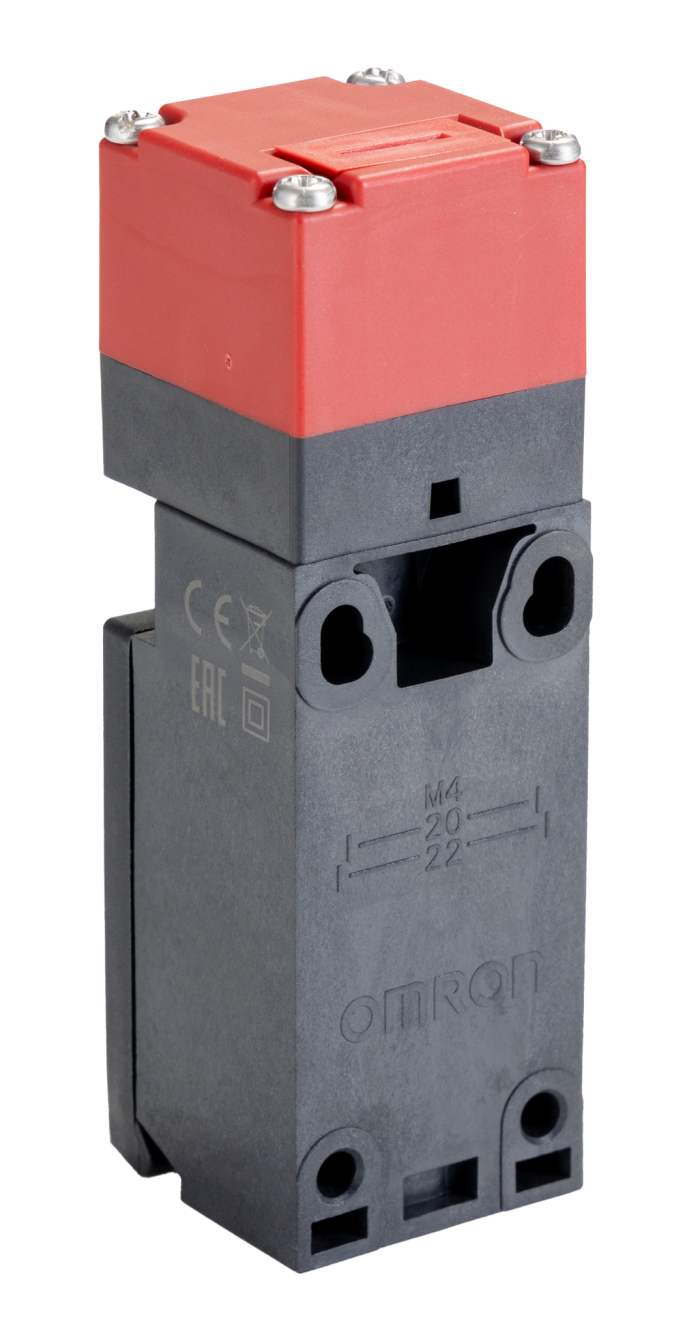

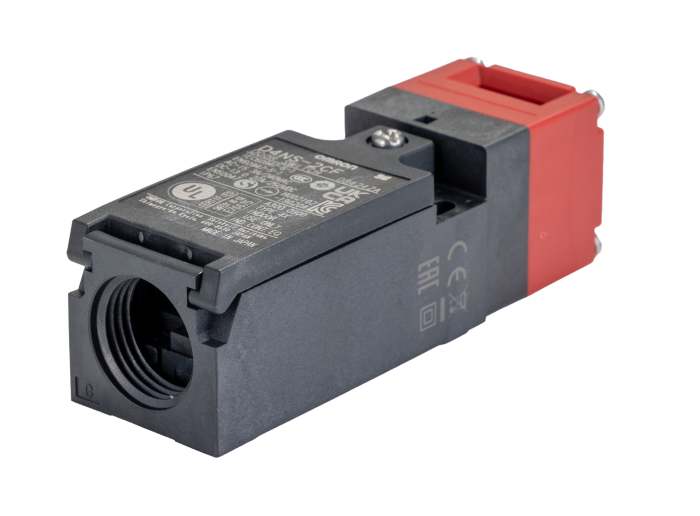

Omron D4NS Safety Door Switch, Plastic
The D4NS is a labour saving and environmentally friendly safety door switch with separate actuator and make-before-break contacts (MBB). This interlock switch is ideal for use in applications with sliding, hinged and removable guards that need to be closed for operational safety.
Standardised gold-clad contacts for high contact reliability
Applicable to both standard loads and micro loads
Free of lead, cadmium, and hexavalent chrome, reducing the burden on the environment
Conforms to the Machinery Directive and Low Voltage Directive
Approvals
TUV, UL, CCC, CSA.
Standards
EN60947-5-1 (approved direct opening), UL508 CSA C22.2 No.14, GS-ET-15, GB14048.5, EN50047, EN1088.
Interlock Switch
