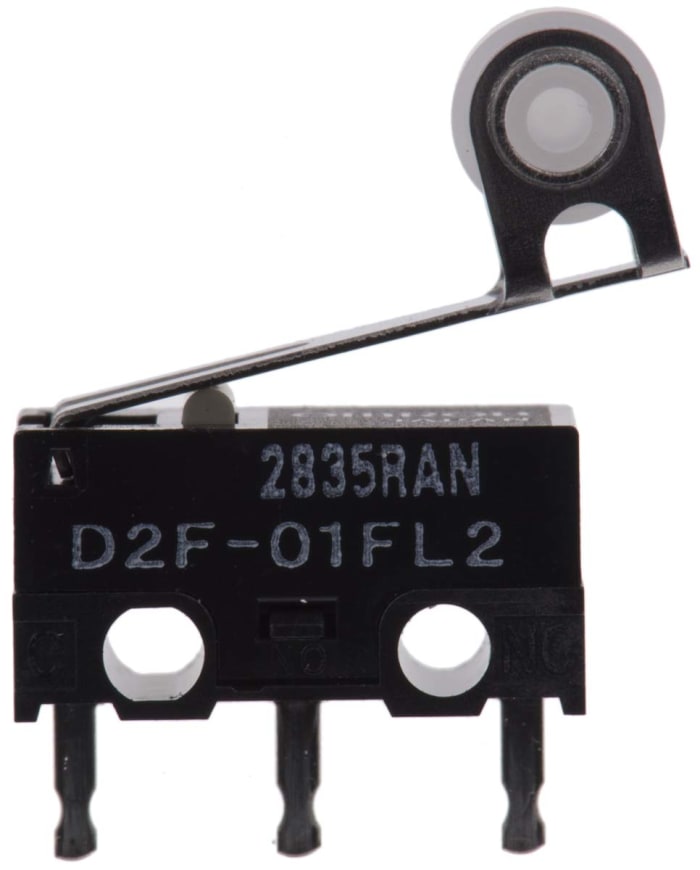

Omron Roller Lever Micro Switch, PCB Terminal, 100 mA @ 30 V dc, SPDT, IP40

Name: Omron Roller Lever Micro Switch, PCB Terminal, 100 mA @ 30 V dc, SPDT, IP40
Brand: Omron
SKU: 6867698

RS Stock No.: 686-7698Brand: OmronManufacturers Part No.: D2F-01FL2

View all in Micro Switches

Technical Documents

Specifications

Brand

Omron

Actuator Type

Roller Lever

Terminal Type

PCB

Contact Current Rating

100 mA @ 30 V dc

Contact Configuration

SPDT

IP Rating

IP40

Operating Force

0.39 N

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

+65°C

Contact Material

Gold Alloy

Mechanical Life

1000000Operations

Release Force

0.02N

Operating Temperature Range

-25 → +65°C

Country of Origin

Japan

Product Details

Ultra Sub-Miniature Micro-switch

Snap action sub-miniature microswitch ideal for home appliances, audio equipment and communications equipment.

RoHS compliant
Contact rating: 3A @125Vac with silver contacts and 0.1A @ 30Vdc with gold contacts
SPDT contact configuration
Snap action

Approvals: UL & CSA
