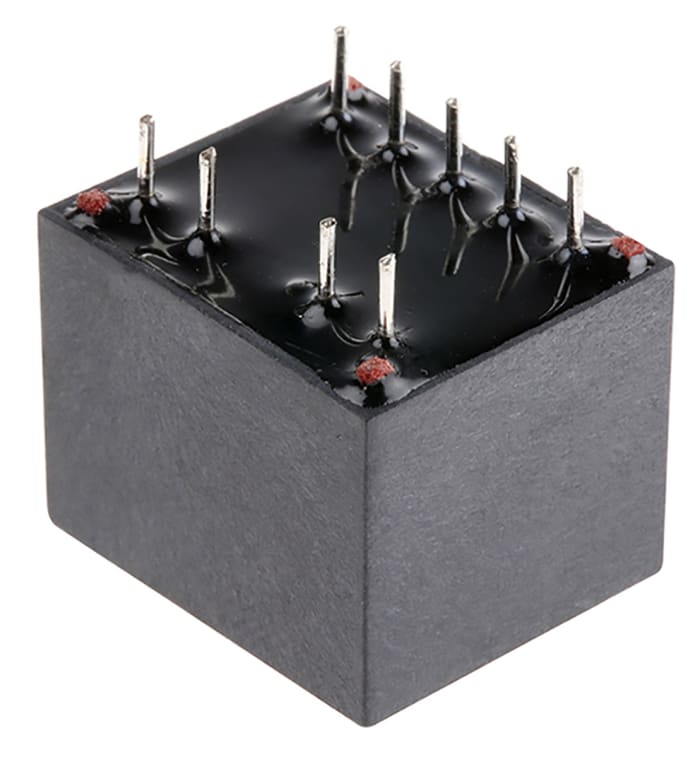

Through Hole Audio Transformer

Name: Through Hole Audio Transformer
Brand: OEP
SKU: 6676035

RS Stock No.: 667-6035Brand: OEPManufacturers Part No.: Z21806E

View all in Audio Transformers

Technical Documents

Specifications

Brand

OEP

Primary DC Resistance

270Ω

Secondary DC Resistance

300Ω

Dimensions

21.5 x 16.3 x 18mm

Mounting Type

Through Hole

Depth

18mm

Length

21.5mm

Width

16.3mm

Turns Ratio

1:1

Minimum Operating Frequency

1Hz

Maximum Operating Frequency

180kHz

Product Details

PCB mounting Input Transformers

Miniature PCB mounting audio frequency transformers suitable for input isolation and impedance matching applications
Encapsulated construction with pin 3 missing for orientation
C versions have a screening can fitted
Optional sreening can for unscreened models available
