Technical Documents
Specifications
Brand
Nidec ComponentsProduct Type
DC Geared Motor
Supply Voltage
12V dc
Sub Type
Brushed Geared
Output Speed
100rpm
Shaft Diameter
3mm
Maximum Output Torque
0.06Nm
Gearhead Type
Brushless
Gear Ratio
120:1
Current Rating
250mA
Material
Steel
Shaft Length
10mm
Length
48mm
Depth
16mm
Standards/Approvals
RoHS
Width
16mm
Series
MG16B
Country of Origin
Vietnam
Product Details

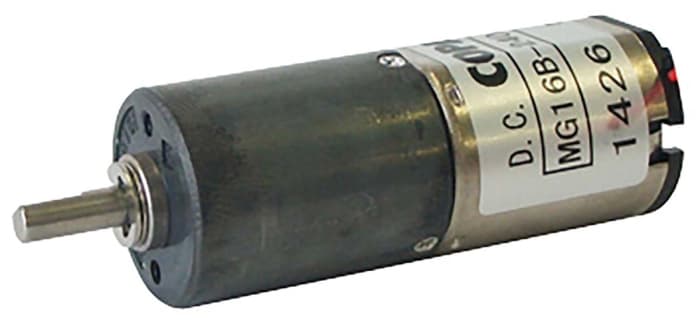

The Copal Electronics 12 V DC geared motor belongs to MG16B series having rated speed up to 100 rpm. The operating principle is when an electric current is passed through the rotor through the commutator, because it is in the magnetic field, it rotates and with this rotational force the motor is used to perform mechanical work.
Stock information temporarily unavailable.
€ 34.20
€ 34.20 Each (Exc. VAT)
1
€ 34.20
€ 34.20 Each (Exc. VAT)
Stock information temporarily unavailable.
1
