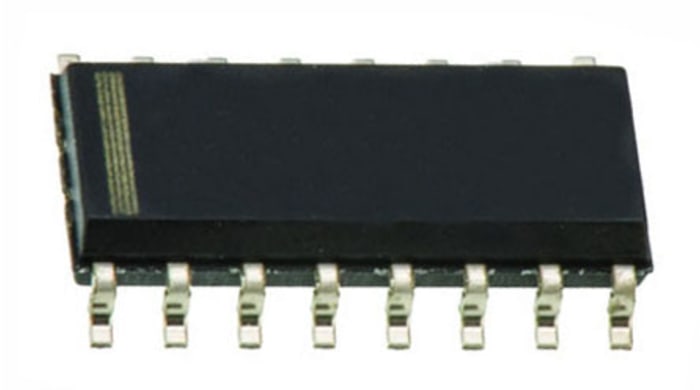

Nexperia 74LV595D,112 8-stage Surface Mount Shift Register 74LV, 16-Pin SOIC
Technical Document
Specifications
Brand
NexperiaPackage Type
SOIC
Logic Function
Shift Register
Number of Stages
8
Logic Family
74LV
Mounting Type
Surface Mount
Operation Mode
Serial to Serial, Parallel
Number Of Elements
1
Pin Count
16
Minimum Operating Supply Voltage
1 V
Maximum Operating Supply Voltage
3.6 V
Dimensions
10 x 4 x 1.45mm
Minimum Operating Temperature
-40 °C
Reset Type
Asynchronous
Maximum Operating Temperature
125 °C
Direction Type
Uni-Directional
Triggering Type
Negative Edge, Positive Edge
Product details
74LV Family, Nexperia
Low-Voltage CMOS logic
Operating Voltage: 1.0 to 5.5
Compatibility: Input LVTTL/TTL, Output LVCMOS
