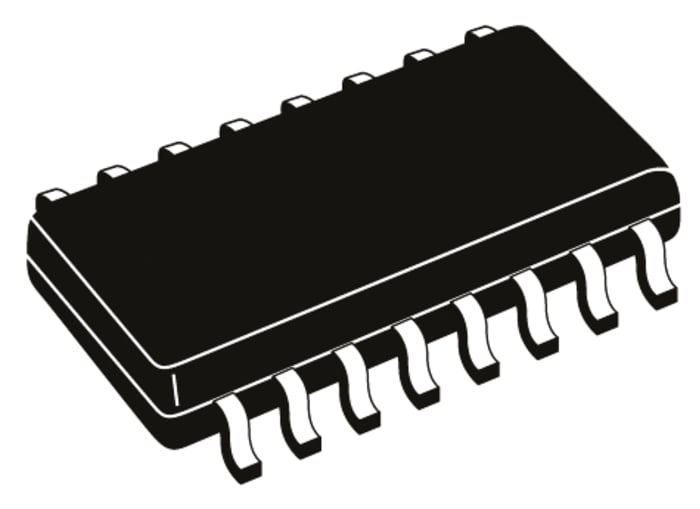

Texas Instruments SN74LV595AD 8-stage Surface Mount Shift Register LV, 16-Pin SOIC

RS Stock No.: 527-243Brand: Texas InstrumentsManufacturers Part No.: SN74LV595AD
brand-logo
View all in Counter ICs

Technical Document

Specifications

Brand

Texas Instruments

Package Type

SOIC

Logic Function

Shift Register

Number of Stages

8

Logic Family

LV

Mounting Type

Surface Mount

Operation Mode

Serial to Serial/Parallel

Number Of Elements

1

Pin Count

16

Minimum Operating Supply Voltage

2 V

Maximum Operating Supply Voltage

5.5 V

Dimensions

9.9 x 3.91 x 1.58mm

Length

9.9mm

Width

3.91mm

Maximum Operating Temperature

+85 °C

Triggering Type

Positive Edge

Height

1.58mm

Minimum Operating Temperature

-40 °C

Direction Type

Uni-Directional

Product details

74LV Family, Texas Instruments

Low-Voltage CMOS logic
Operating Voltage: 2 to 5.5
Compatibility: Input LVTTL/TTL, Output LVCMOS

74LV Family

Ideate. Create. Collaborate

JOIN FOR FREE

No hidden fees!

design-spark
design-spark
  • Download and use our DesignSpark software for your PCB and 3D Mechanical designs
  • View and contribute website content and forums
  • Download 3D Models, Schematics and Footprints from more than a million products
