Neutrik, OpticalCON, LC Multimode Duplex Fibre Optic Connector, Plastic Optical, 0.5dB Insertion Loss

Neutrik Fibre Optic Connector

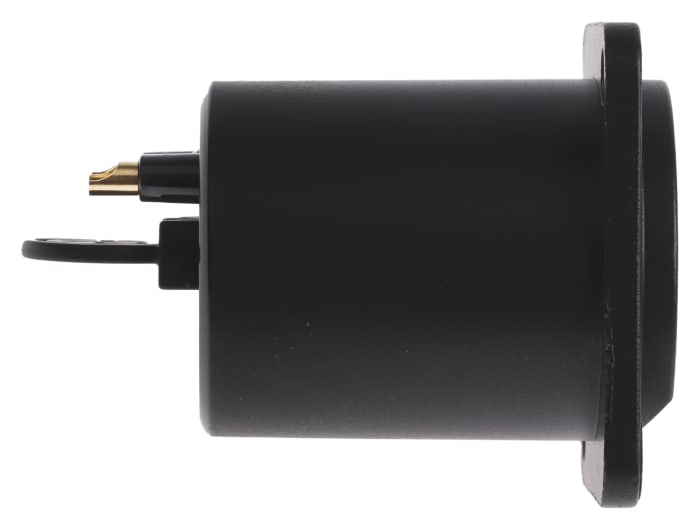

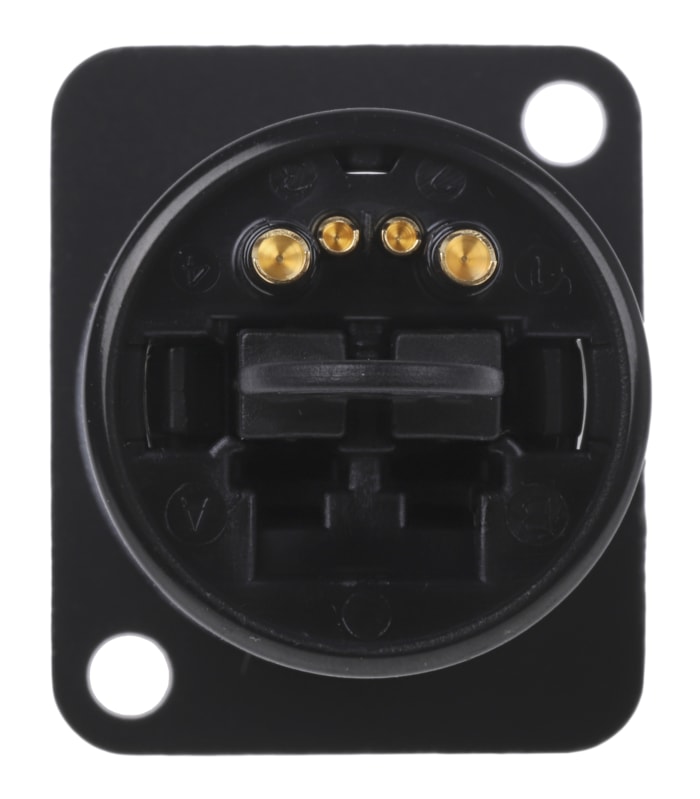

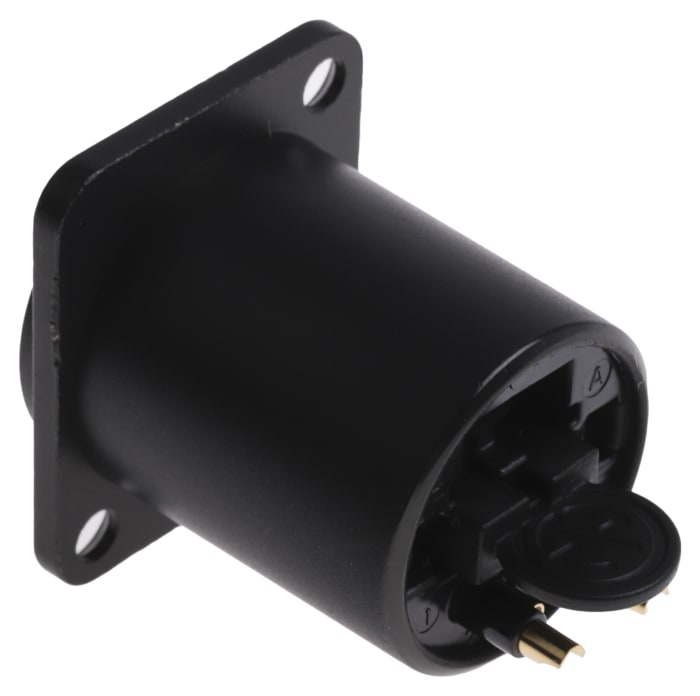

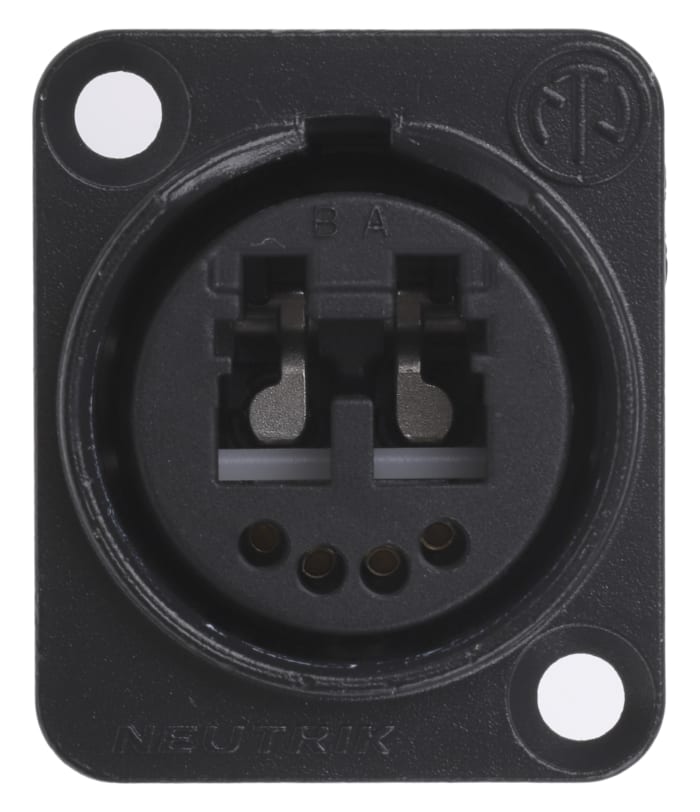

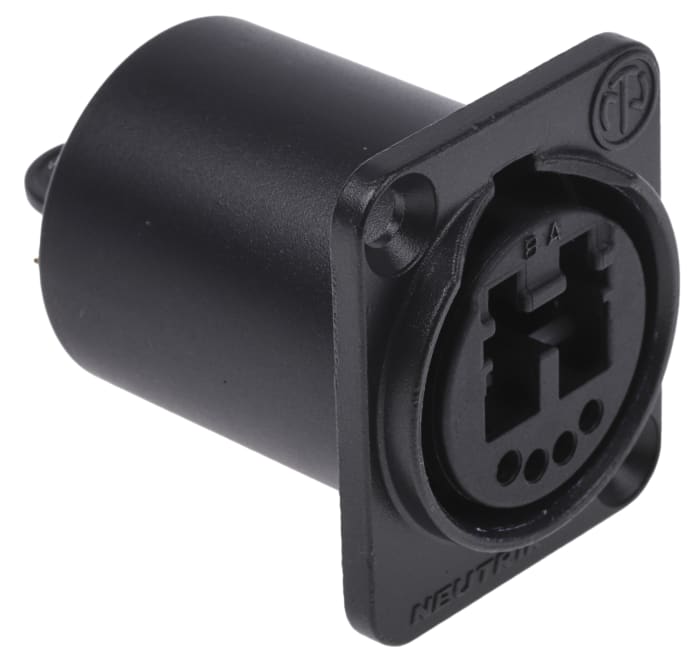

The Neutrik OpticalCON series female chassis connector with black chromium plating has 4 solder contacts and 1 LC-Duplex feedthrough socket. It acts as a "feed-through" allowing simplified installations by connecting a conventional LC-Duplex on the rear. It is built in the standard D size shell and features an automatic sealing cover for maximum dust and dirt protection and a Push-Pull locking mechanism for safe connection.

Features and Benefits

• A viable alternative to traditional connectors in fixed installations
• Connection on the front side either by rugged OpticalCON or standard LC connector
• In case of limited space, the chassis can be mounted without a rubber gasket (IP52)
• Operating temperature ranging between -40°C and 75°C
• Shutter and silicone gasket protects optical connection from dust and dirt
• Suggested OEM equipment connector due to LC front compatibility
• Colour coding with SCDP is given as multimode-black, single mode PC-blue and single mode APC-green
• Insertion loss of <0.4 dB
• Water resistant

Certifications

• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
• IP52 rated
