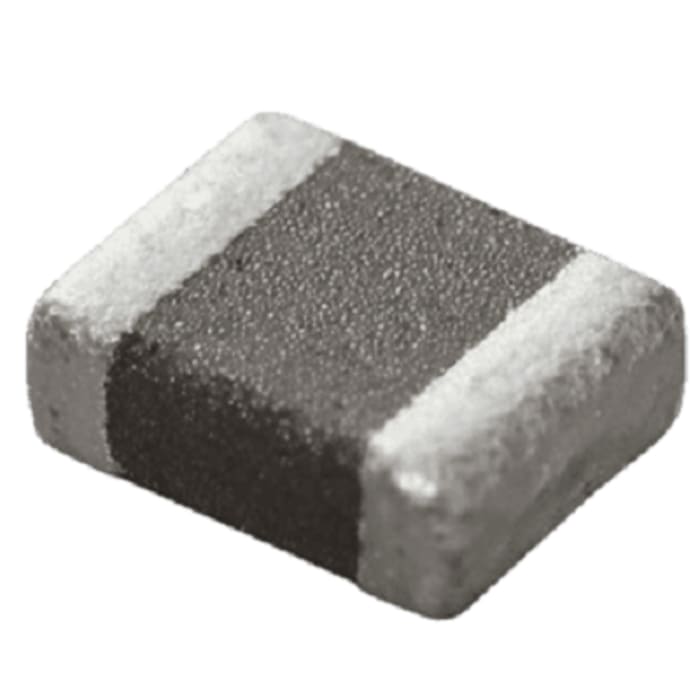

Murata, DFE322512F, 1210 Shielded Surface Mount Inductor with a Metal Alloy Core, 330 nH ±20 % 8.5 A Idc

RS Stock No.: 240-8491Brand: MurataManufacturers Part No.: DFE322512F-R33M=P2
brand-logo
View all in Surface Mount Inductors

Technical Document

Specifications

Brand

Murata

Product Type

Surface Mount Inductor

Inductance

330nH

Maximum DC Current

8.5A

Package/Case

1210

Packaging

Tape & Reel

Length

3.2mm

Automotive Standard

No

Shielding

Yes

Pin Count

2

Minimum Operating Temperature

-40°C

Maximum DC Resistance

20mΩ

Maximum Operating Temperature

125°C

Series

DFE322512F

Inductance Tolerance

±20 %

Height

1.2mm

Depth

2.5mm

Standards/Approvals

RoHS

Core Material

Metal Alloy

Termination Style

Surface Mount

Inductor Construction

Wirewound

Moulded

Yes

Country of Origin

Vietnam

Ideate. Create. Collaborate

JOIN FOR FREE

No hidden fees!

design-spark
design-spark
  • Download and use our DesignSpark software for your PCB and 3D Mechanical designs
  • View and contribute website content and forums
  • Download 3D Models, Schematics and Footprints from more than a million products
Click here to find out more
View all in Surface Mount Inductors

Stock information temporarily unavailable.

€ 897.85

€ 897.85 1 Reel of 3000 (Exc. VAT)

Murata, DFE322512F, 1210 Shielded Surface Mount Inductor with a Metal Alloy Core, 330 nH ±20 % 8.5 A Idc
