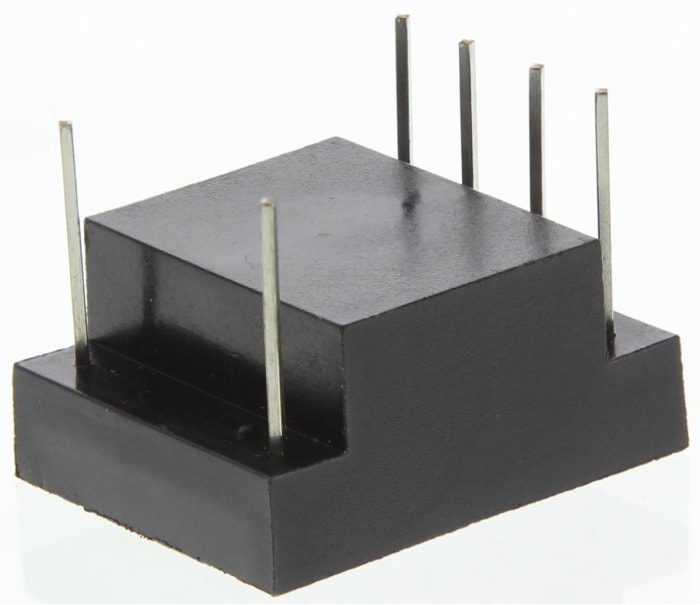

Murata Power Solutions Through Hole Pulse Transformer

Name: Murata Power Solutions Through Hole Pulse Transformer
Brand: Murata Power Solutions
SKU: 7156936

RS Stock No.: 715-6936Brand: Murata Power SolutionsManufacturers Part No.: 77202C

View all in Pulse Transformers

Technical Documents

Specifications

Brand

Murata Power Solutions

Mounting Type

Through Hole

Dimensions

25.4 x 20.3 x 12.3mm

Depth

12.3mm

Length

25.4mm

Width

20.3mm

Maximum Temperature

+70°C

Termination Type

Minimum Temperature

0°C

Product Details

Pulse Transformer 772 Series

Pulse transformers used in coupling, thyristor/triac firing and medium sized switch mode power supply applications
The standard turns ratios may be modified by connecting any two windings in series
